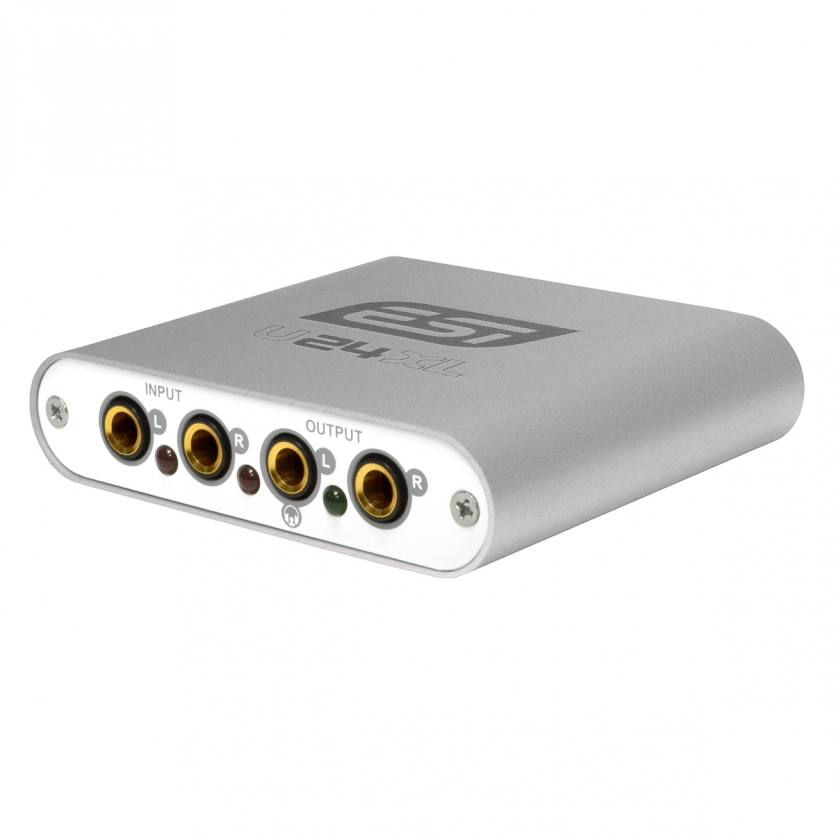

ESI U24 XL 24-bit USB Audio Interface for PC and Mac with S/PDIF I/O

Esi Audiotechnik
Availability:

In stock


  • For DJs and Remixers
  • USB Connectivity
  • Two 1/4″ TRS Line Inputs
  • Two 1/4″ TRS Line Outputs
  • Left Line Out Servers as Headphone Out
  • 24-Bit / 48 kHz Digital Resolution
  • Optical and Coaxial S/PDIF I/O
  • Real-Time Input Monitoring
  • Bus Powered / Mac and Windows

$169.99

In stock

ESI’s U24 XL is a highly compact and portable USB audio interface that doesn’t compromise on performance. This 2×2 interface boasts analog line-level inputs and outputs, coupled with versatile digital S/PDIF connectivity, available in both optical and coaxial configurations. Notably, the left line output can double as a headphone output when the right line output is unutilized.

With a robust 24-bit AD/DA conversion capability and support for sample rates of up to 48 kHz, the U24 XL stands as an ideal choice for DJs and remixers looking to achieve top-notch audio quality.

Key Features:

  • Two analog inputs and two analog output channels equipped with 1/4″ TRS connectors.
  • Flexible output connector, which can serve as a headphone output when needed.
  • S/PDIF digital input and output options via optical (TOSLINK) and coaxial (RCA) connectors.
  • High-quality 24-bit AD/DA converter ensures pristine audio conversion.
  • Real-time input monitoring for seamless signal tracking.
  • Driver support for various Windows operating systems, including Windows 10, 8.1, 8, 7, Vista, and XP, with ASIO 2.0 support for low-latency performance.
  • Compatibility with Mac OS X 10.4 and later, offering Core Audio support.
  • Bundled with Stanton Deckadance LE v2 DJ software, enhancing your creative possibilities.
  • Convenient USB bus-powered design for hassle-free connectivity and power supply.

In summary, ESI’s U24 XL packs exceptional audio capabilities into a remarkably small and portable form factor, making it a must-have tool for professionals and enthusiasts seeking high-quality sound on the go.

Weight 0.45359237 kg
Dimensions 20.574 × 17.272 × 4.572 cm
brands

Esi Audiotechnik

Specifications



Form Factor Desktop
Display None
Channels of I/O 2 Inputs / 2 Outputs
Maximum Sampling Rate 48 kHz / 24-Bit
Number of Microphone Preamps None
Expansion Slots None

Signal Processing

Pad None
High-Pass Filter None
Solo/Mute None

Connectivity

Analog Audio I/O 2 x 1/4″ TRS Unbalanced Line Input (Front Panel)
2 x 1/4″ TRS Line Output (Front Panel)
Digital Audio I/O 1 x TOSLINK Optical S/PDIF Input
1 x TOSLINK Optical S/PDIF Output
1 x RCA Coaxial S/PDIF Input
1 x RCA Coaxial S/PDIF Output
Host Connection / USB USB Type-B
Host Connection Protocol USB 2.0
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None

Performance

Maximum Input Level +4.7 dBu
Maximum Output Level +6.9 dBu

Digital Audio

Sample Rates 32 / 44.1 / 48 kHz
Sample Rate Conversion None
Bit Depths 24-Bit (AD/DA Conversion)
Sync Sources Internal, S/PDIF
Audio Storage & Playback
Memory Card Slot None

Compatibility

OS Compatibility macOS 10.4 or Later
Windows XP
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
*As of June, 2022: Check with manufacturer for the most up-to-date compatibility
Included Software Stanton Deckadance LE 2
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Stanton Deckadance
Included Plug-Ins None
Supported Drivers/API & Plug-Ins macOS Class-Compliant (No Driver Needed)
ASIO 2
DirectX
GSIF 2
MME
WDM
Processor Requirement Mac:
PowerPC G4
PC:
600 MHz Intel Pentium III
RAM Requirements 512 MB
Required Hardware Available USB Port
Internet Connection Required for Registration, Software/Driver Download

Power

Power Requirements USB Bus Power

Physical

Dimensions 3.9 x 3.5″ / 10 x 9 cm

Packaging Info

Package Weight 1 lb
Box Dimensions (LxWxH) 8.1 x 6.8 x 1.8″
