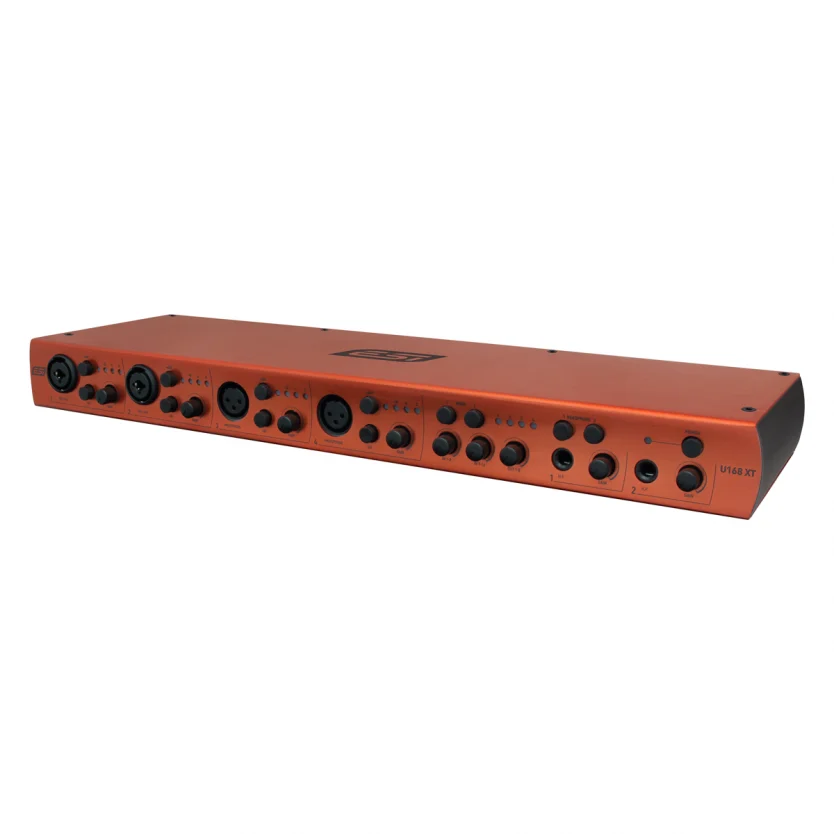

ESI U168 XT Professional 24-bit USB Audio Interface with 16 Inputs / 8 Outputs

Esi Audiotechnik
Availability:

In stock
Add to wishlist
Compare
  • High Speed USB 2.0 Computer Interface
  • 2 x Mic Preamps with +48V Phantom Power
  • 24-Bit / 96 kHz Audio Processing
  • 8 Inputs / 6 Outputs

$879.99

In stock

Price Match

Introducing the ESI 16×8 24-Bit USB Audio Interface: Unleash Your Sonic Creativity

Experience the pinnacle of audio versatility with the ESI 16×8 USB 2.0 Hi-Speed audio interface. This powerhouse offers an array of features that cater to the most demanding audio enthusiasts.

Key Features:

  1. 16 Input Channels, 8 Output Channels: With an impressive 16 input channels and 8 output channels, you have the flexibility to capture and create your audio masterpieces.

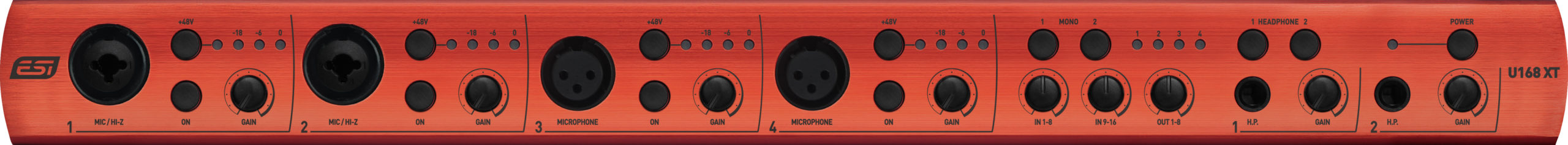

  2. Integrated Microphone Preamps: Four microphone preamps with XLR inputs grace the front panel, complete with switchable 48V phantom power. Expect studio-quality vocal and instrument recordings.
  3. Hi-Z Instrument Inputs: Two Hi-Z instrument inputs are tailor-made for electric guitars, ensuring your stringed performances are captured with precision.
  4. Digital S/PDIF: Enjoy seamless digital connectivity with digital S/PDIF input and output featuring RCA connectors.
  5. Dual Headphone Outputs: Find convenience in two independent headphone outputs positioned on the front panel, alongside an integrated monitoring mixer for precise control.

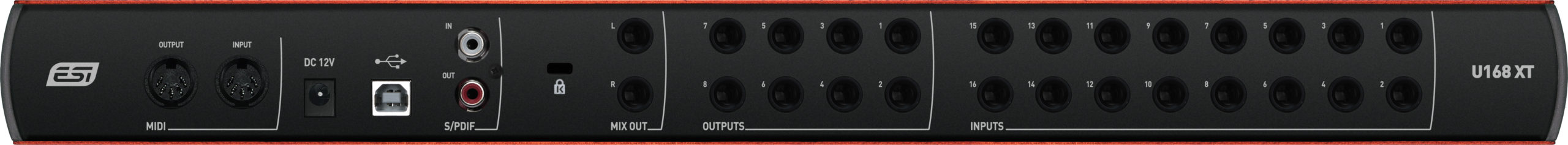

  6. MIDI Connectivity: The rear side of the unit hosts MIDI input and output, perfect for connecting external keyboards, synthesizers, and sound modules.
  7. Low-Latency Drivers: Powered by ESI’s cutting-edge EWDM and DirectWIRE technology, this interface boasts low-latency drivers that support WDM, ASIO 2.0, and CoreAudio for both Mac and Windows platforms.

High-Resolution Audio: Achieve audio excellence with a 24-bit/96 kHz solution that provides balanced 1/4″ TRS line connectors for pristine sound quality.

Included DC Power Supply: The ESI 16×8 USB Audio Interface is powered by an included DC power supply, ensuring consistent and reliable performance.

Unlock the potential of your music and recordings with the ESI 16×8 24-Bit USB Audio Interface. Whether you’re a vocalist, instrumentalist, or music producer, this interface delivers the tools you need to create, capture, and refine your audio projects. Elevate your sound and embrace limitless creativity.

SKU: ESIA_U168XT Categories: , , , ,
Weight 2.857631931 kg
Dimensions 57.658 × 17.272 × 8.636 cm
brands

Esi Audiotechnik

Specifications



Form Factor Desktop
Channels of I/O 8 Input / 6 Output
Maximum Sampling Rate 96 kHz / 24-Bit
Number of Microphone Preamps 2 Preamps

Connectivity

Analog Audio I/O 2 x Combo XLR-1/4″ TRS Input
8 x 1/4″ TRS Line Input
6 x 1/4″ TRS Line Output
2 x 1/4″ TRS Monitor Output
1 x 1/4″ TRS Headphone Output
Digital Audio I/O 1 x RCA Coaxial S/PDIF Input
1 x RCA Coaxial S/PDIF Output
Host Connection / USB 1 x USB Type-B
Host Connection Protocol USB 2.0
MIDI I/O 1 x DIN 5-Pin Input
1 x DIN 5-Pin Output

Performance

Dynamic Range A/D Converters:
107 dBA
D/A Converters:
112 dBA

Digital Audio

Sample Rates 96 kHz
Bit Depths Up to 24-Bit

Compatibility

OS Compatibility Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
macOS 10.7 or Later
*As of June, 2022: Check with manufacturer for the most up-to-date compatibility

Power

Power Requirements AC/DC Power Adapter (Included)

Physical

Dimensions 12.2 x 5.7 x 1.8″ / 31 x 14.5 x 4.5 cm

Packaging Info

Package Weight 4.75 lb
Box Dimensions (LxWxH) 17.25 x 6.75 x 3.5″
