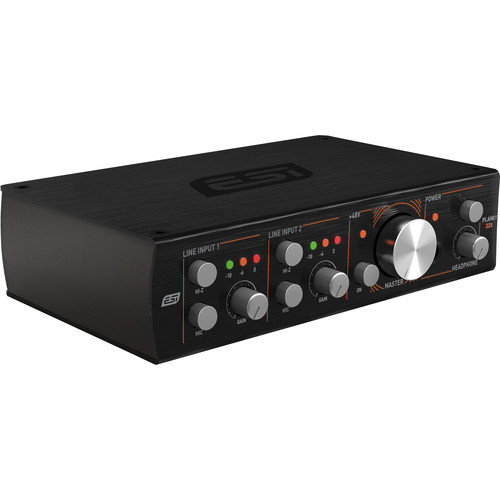

ESI planet 22x Professional Dante Audio Interface with 2 inputs / 2 outputs

Esi Audiotechnik
Availability:

Out of stock

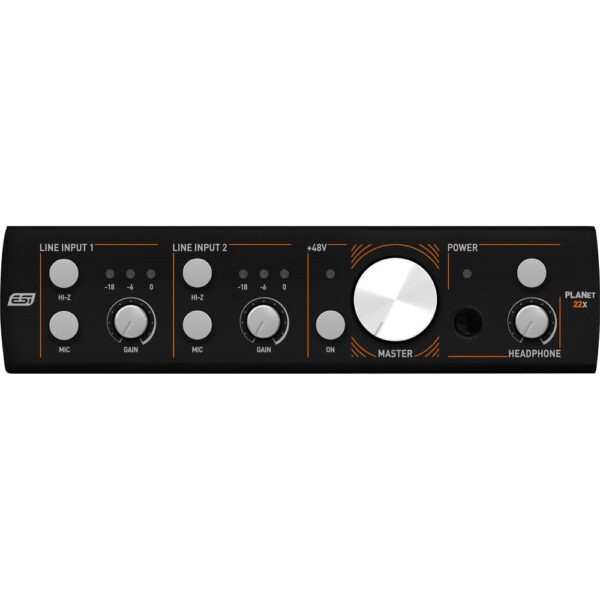

  • Dante Interface with PoE Support
  • 24-Bit / 96 kHz Converters
  • Low-Noise, High-Gain Preamplifiers
  • Dual XLR-1/4″ Mic/Line/Hi-Z Inputs
  • Globally Selectable 48 VDC Phantom Power
  • Dual XLR Line Outputs with Level Control
  • 1/4″ Headphone Jack with Volume Knob
  • Powered via Power Adapter or PoE Source
  • Includes Power Supply & Software Bundle
  • Compatible with Mac & Windows Computers

$989.99 $1,099.99

Out of stock

The ESI PLANet 22x is a versatile 2-channel Dante audio interface designed to meet the demands of musicians, producers, and engineers across diverse settings, from home studios to live stage performances.

Key Features:

  1. Dual-Functionality: Operate the PLANet 22x as a networked Dante audio device or a host-connected audio interface, providing flexibility for various audio applications.
  2. Premium Inputs: Two XLR-1/4″ combo inputs accommodate mic, line, or Hi-Z sources, with globally selectable phantom power. High-gain preamplifiers ensure exceptional audio quality.
  3. Superior Conversion: Enjoy pristine analog-to-digital and digital-to-analog conversion with 24-bit/96 kHz converters, delivering professional-grade sound.
  4. Effortless Routing: Separate level controls for the dual XLR line outputs and the 1/4″ headphone jack make it easy to route signals to speakers and headphones, catering to your specific monitoring needs.
  5. Dante Connectivity: The RJ45 port facilitates seamless connectivity with a Dante network or a host computer, enhancing your audio workflow.
  6. Compatibility: The PLANet 22x is compatible with both Mac and Windows systems, ensuring broad accessibility for users.
  7. Flexible Power Options: Power the interface using the included 12 VDC power supply or via a compliant PoE (Power over Ethernet) source, offering versatility for different setups.
  8. Bundled Software: The package includes bundled software and licenses from Bitwig, Stanton, Audified, and Audinate, providing creative opportunities for musicians, DJs, and podcast producers.

Specifications:

  • Globally selectable +48 VDC phantom power for condenser microphones
  • 3-segment LED meters indicate signal levels
  • Powered via included 12 VDC power supply or PoE compliant with IEEE 802.3af
  • Requires DVS (Dante Virtual Soundcard) software (license included) and free Dante Controller software
  • Supports macOS systems via CoreAudio, and Windows systems via ASIO 2.0 and WDM

The ESI PLANet 22x is your gateway to top-tier audio performance and seamless integration in any audio environment. Whether you’re capturing vocals, instruments, or designing immersive soundscapes, this interface delivers exceptional results. Elevate your audio game with the PLANet 22x.

Weight 1.0024391377 kg
Dimensions 28.702 × 14.478 × 8.128 cm
brands

Esi Audiotechnik

Specification

Form Factor Desktop
Display 2 x Multi-Segment LED Meter
Channels of I/O Analog:
2 Input / 2 Output at 96 kHz
Maximum Sampling Rate 96 kHz / 32-Bit
Number of Microphone Preamps 2 Preamps

Signal Processing

Gain/Trim Range Mic Inputs:
+19 dB to +67 dB
Line Inputs:
+13 dB to +42 dB
Hi-Z Inputs:
0 dB to +29 dB

Connectivity

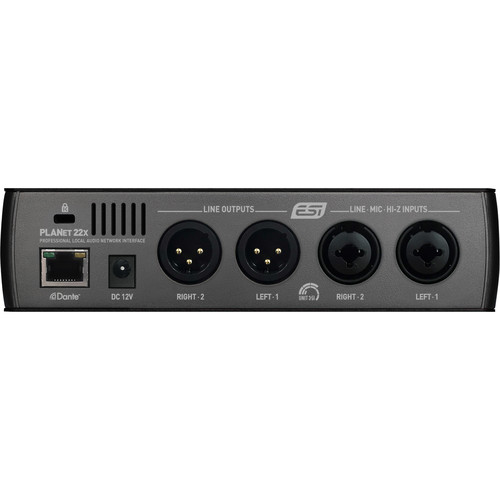

Analog Audio I/O 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x XLR 3-Pin Balanced Line Output
1 x 1/4″ TRS Unbalanced Headphone Output
Phantom Power 48 V (Applied to All Inputs)
Digital Audio I/O None
Host Connection / USB None
Host Connection Protocol None
Network I/O 1 x RJ45 Dante
MIDI I/O None

Performance

Frequency Response Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.1 dB
Line Outputs:
20 Hz to 20 kHz ±0.05 dB
Maximum Input Level Mic Inputs:
-49 dBu (Max Gain)
Line Inputs:
-24 dBu (Max Gain)
Hi-Z Inputs:
-10.5 dBu (Max Gain)
Maximum Output Level Line Outputs:
+8.4 dBu
Headphone Outputs:
+10 dBu
Impedance Mic Inputs:
1.5 Kilohms
Mic Inputs:
3 Kilohms
Line Inputs:
10 Kilohms
Hi-Z Inputs:
10 Kilohms
Line Outputs:
110 Ohms
Headphone Outputs:
32 to 600 Ohms
Dynamic Range Inputs:
118 dB
Outputs:
123 dB
SNR Inputs:
118 dB
Outputs:
123 dB
THD+N Mic Inputs:
-99.8 dB
Line Inputs:
-102 dB
Hi-Z Inputs:
-100 dB
Line Outputs:
-110 dB
Headphone Outputs:
-107 dBA
Crosstalk Inputs:
-110 dB
Line Outputs:
-110 dB
Headphone Outputs:
-105 dB

Digital Audio

Sample Rates 44.1 / 48 / 88.2 / 96 kHz
Bit Depths 24-Bit (AD/DA Conversion)
Sync Sources Dante or Internal

Audio Storage & Playback

Memory Card Slot None

Compatibility

OS Compatibility macOS
Windows 7 or Later
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Required Hardware Ethernet Port
Internet Connection Required for Software/Driver Download

Power

Power Requirements AC/DC Power Adapter (Included) or PoE
AC/DC Power Adapter 12 VDC (Included)
Power Consumption 5.4 W (Typical)

Physical

Anti-Theft Features Kensington Security Slot
Dimensions 6.89 x 4.72 x 1.77″ / 17.5 x 11.99 x 4.5 cm
Weight 1.3 lb / 0.6 kg

Packaging Info

Package Weight 2.21 lb
Box Dimensions (LxWxH) 11.3 x 5.7 x 3.2″
