Waves DSPro StageGrid 1000 – SoundGrid Audio Interface 10×10 (1U Full Rack)

WAVES
Availability:

In stock
Add to wishlist
Compare
  • 8 XLR Mic/Line Inputs
  • 4 XLR Line Outputs, 2 Headphone Outputs
  • Digitally Controlled Microphone Preamps
  • Up to 60 dB of Gain
  • Phantom Power per Channel
  • Up to 96 kHz Sample Rate
  • etherCON Port for SoundGrid Network
  • 2-Channel AES/EBU Digital I/O
  • Rugged 1 RU Rackmountable Chassis

$6,519.99

In stock

Price Match

Description

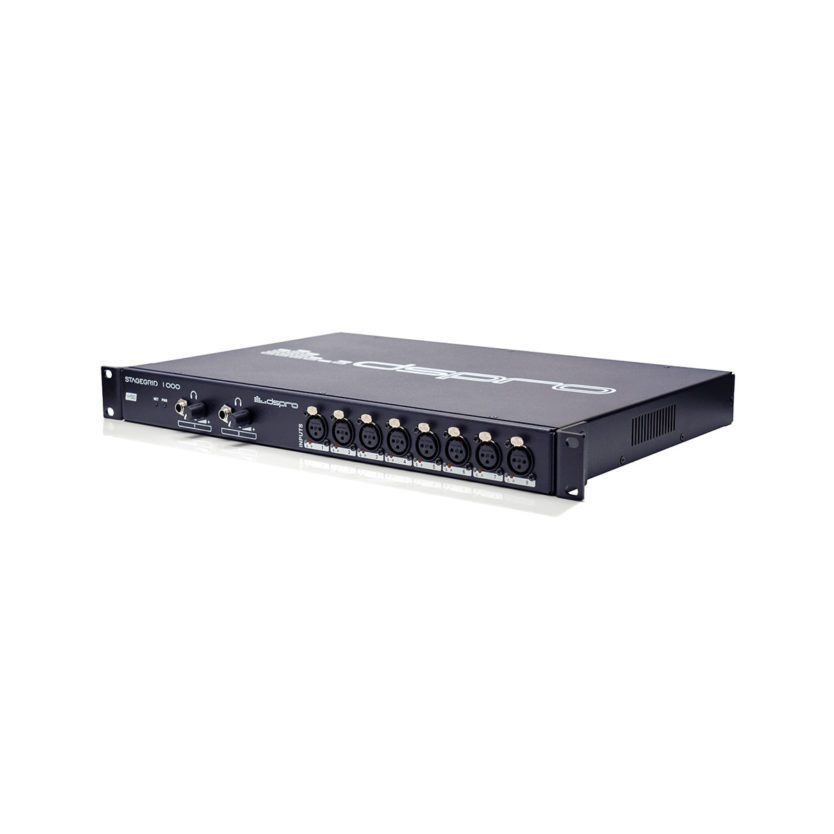

The new DSPRO StageGrid 1000 is a compact, SoundGrid-based audio interface component intended for seamless integration with eMotion LV1 live mixing systems. Use this versatile unit close to your mixing console to add more I/O at FOH or monitors, within touring stage racks to provide convenient I/O for performers or to distribute additional I/O around an existing SoundGrid-based studio facility.
This rugged, single-unit rack delivers eight digitally-controlled mic/line inputs, four balanced analogue outputs, AES/EBU stereo I/O with no-compromise sound quality and rock-solid reliability. It features the same audio interface engine found in the larger DSPRO StageGrid 4000, making it perfect for demanding live mixing environments.
It interfaces with the modular SoundGrid audio networking ecosystem and thus will seamlessly integrate with SoundGrid hosts, DSP servers and compatible I/O components with ease. Just connect it into your SoundGrid dedicated network switch via a simple ethernet connection, and it will immediately appear available for patching within your host without any further configuration.
SoundGrid is the rock-solid, scalable audio distribution infrastructure by Waves, capable of streaming multichannel audio at sample rates up to 96kHz with ultra-low latency whilst leveraging the entire catalogue of Waves Plug-ins in a live production context.
EXAMPLE SETUP
In this setup diagram, on-stage instruments/microphones/headphones connect directly to the StageGrid 4000 and StageGrid 1000 units (with full remote control of all settings from the LV1 mixer located at FOH). An additional StageGrid 1000 is connected at FOH to provide the engineer with headphone outputs and talkback microphone inputs. Incoming audio is processed on a SoundGrid Server and then outputted to the stage-monitors, performer’s headphones, PA system, and FOH headphones.


LEGEND
1. Host computer running the eMotion LV1 mixer (see system requirements)
2. DSPRO StageGrid 1000 I/O unit
3. SoundGrid Server (add a second server for processing redundancy)
4. DS Pro StageGrid 4000 stagebox
5. SoundGrid-qualified network switch
For complete information on supported cable types and lengths, visit the Ethernet Cables for SoundGrid Systems page.

SKU: WVES_DSP1000 Categories: , , , , , , , , , , , ,
Weight 5.0212675359 kg
Dimensions 57.658 × 39.878 × 13.208 cm
brands

WAVES

SPECIFICATIONS



Analog Inputs

Impedance 2.86kOhms
Gain range  -4dB to 60dB
Max input level 28dBu (-4dB gain)
Dynamic range 115 dB (-60dBFS, 20dB gain, 1kHz, A-weighted)
THD 0,002 % (-1 dBFS, 20dB gain, 1kHz, A-weighted)
Equivalent input noise -128dBu (60dB gain, A-weighted, 150 ohms)
Frequency response  +/- 0.1 dB (20Hz to 40kHz at 96kHz sampling rate)
Phase Shift <10° at 20Khz

Analog Outputs

Output impedance 50 ohms
Max output Level (0dBFS) 24dBu
Dynamic range 115 dB (-60dBFS, 1kHz, A-weighted)
THD 0,002 % (-1dBFS, 20dB gain, 1kHz, A-weighted)
Frequency response +/-0.1dB (20 to 40kHz at 96kHz)
Phase shift <5° at 20Khz

AES/EBU IN/OUT

Standard AES3 (2009)
Sample rates 44.1, 48, 88.2, 96kHz
Impedance  110 ohms

Headphones

Output Power  150mW per channel on 16 ohms
Dynamic range  100dB

SoundGrid

Interface Gigabit Ethernet
Connector Neutrik EtherCON

Power supply

Voltage 110/240VAC
Frequency 50Hz or 60Hz
Power 60W

Environmental specifications

Operating temperature 0°C – 40°C
Relative humidity Up to 90% non-condensing

Dimensions

Height 44mm / 1.75” (1RU)
Width 430mm / 19.92” (for 19” rack)
Depth 300mm / 11.81” (not including connectors)

General

  • 8 x Analog mic/line inputs
  • 4 x Analog line outputs
  • 1 x Stereo AES/EBU Digital input
  • 1 x Stereo AES/EBU Digital output
  • 2 x headphone outputs
  • 1 x SoundGrid Ethernet port
  • Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz
