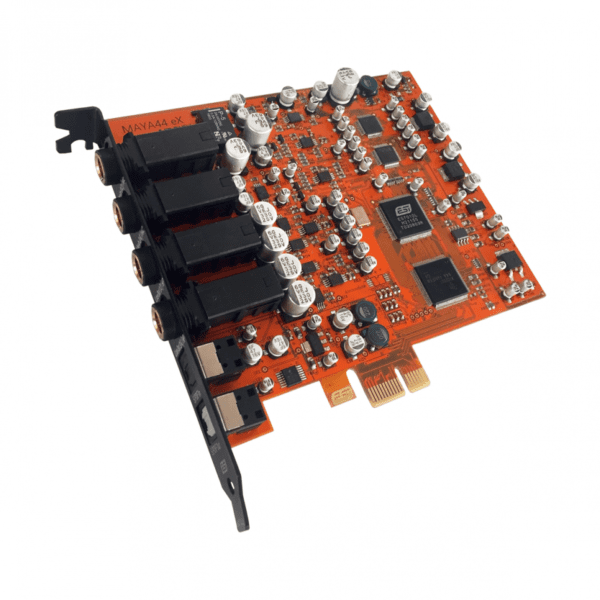

ESI MAYA44 eX 24-bit/96kHz PCIe Audio Interface with 4 in / 4 out
Availability:
In stock
- Two Stereo 1/4″ Inputs and Outputs
- Resolutions up to 24-Bit/96 kHz
- Microphone Input with +48V Phantom Power
- Hi-Z Guitar Input
- Headphone Output
- Optical S/PDIF Input and Output
- Bundled with a Deckadance LE License
- Includes inTone 2 ESI Edition Software
- Plug-Ins: ampLion Free and GK Amp 2 LE
- Mac and Windows Compatible
$329.00
In stock
The Maya44 eX by ESI is a high-performance PCIe audio interface designed for professionals and enthusiasts seeking top-notch audio quality and versatility.
Key Features:
- Impressive I/O: With two stereo 1/4″ inputs and two stereo 1/4″ outputs, the Maya44 eX offers four discrete I/O channels, perfect for complex audio setups.
- Microphone Preamp: A +48V phantom-powered microphone preamp ensures your vocal recordings are pristine and studio-grade.
- Hi-Z Instrument Input: The Hi-Z input lets you connect your guitar directly, making it ideal for musicians and guitarists.
- Simultaneous Playback and Recording: Enjoy full-duplex recording and playback capabilities for uninterrupted audio creation.
- Digital Connectivity: Optical S/PDIF inputs and outputs provide seamless digital connections for added flexibility.
- Included Software Package: The Maya44 eX comes bundled with powerful software, including inTone 2 ESI Edition by Audified, ampLion Free, and GK Amplification 2 LE for audio processing and recording. Additionally, you get Deckadance LE by Stanton, a high-quality DJ application.
- Professional Grade: Benefit from 24-bit/96 kHz 102 dBA A/D and 108 dBA D/A converters, ensuring the highest audio quality for your projects.
- Low-Latency Driver: The low-latency EWDM driver offers compatibility with MME, WDM, DirectSound, and ASIO 2.0, making it suitable for various audio applications.
- Windows Compatibility: The Maya44 eX is Windows compatible, supporting Microsoft Windows Vista, 7, 8, 8.1, and 10 in both 32-bit and 64-bit versions.
- DirectWIRE Support: Enjoy full extended DirectWIRE support with virtual channels, enhancing your routing options.
The Maya44 eX is your gateway to professional-grade audio recording and playback. Whether you’re a musician, podcaster, or DJ, its exceptional features, bundled software, and compatibility make it a valuable addition to your setup. Elevate your audio experience with the Maya44 eX by ESI.
| Weight | 0.27 kg |
|---|---|
| Dimensions | 23.1 × 14.8 × 4 cm |
| brands | Esi Audiotechnik |
Specifications
| Form Factor | Internal Card |
| Display | None |
| Channels of I/O | 4 Input / 4 Output |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Number of Microphone Preamps | 1 Preamp |
| Built-In Microphone | None |
| Expansion Slots | None |
Signal Processing
| Pad | None |
| Gain/Trim Range | Mic Inputs: 21 dB Line: +24 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
Connectivity
| Analog Audio I/O | 2 x 1/4″ TRS Line Input 2 x 1/4″ TRS Line Output |
| Phantom Power | 48 V |
| Digital Audio I/O | 1 x TOSLINK Optical S/PDIF Input 1 x TOSLINK Optical S/PDIF Output |
| Host Connection / USB | PCIe |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
Performance
| Headphone Output Power | 125 mW per Channel into 32 Ohms |
| Impedance | Inputs: 10 Kilohm (Line Level) Outputs: 33 Ohm |
| Dynamic Range | A/D Converters: 102 dBA D/A Converters: 108 dBA |
Digital Audio
| Sample Rates | Up to 96 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
Compatibility
| OS Compatibility | Windows Vista Windows 7 Windows 8 Windows 8.1 Windows 10 *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software | None |
| Compatible Software (Not Included) | Cubase |
| Included Plug-Ins | None |
| RAM Requirements | 2 GB |
| Required Hardware | Available USB Port |
| Internet Connection | Required for Registration |
Power
| Power Requirements | PCIe |
Physical
| Dimensions | 4.72 x 2.76 x 0.79″ / 12 x 7 x 2 cm |
Packaging Info
| Package Weight | 0.605 lb |
| Box Dimensions (LxWxH) | 9.1 x 5.85 x 1.6″ |
