Art Pro Audio, Audio Processing, DI Module, DI Modules & Direct Boxes, Installation, Live Sound, Studio Gear

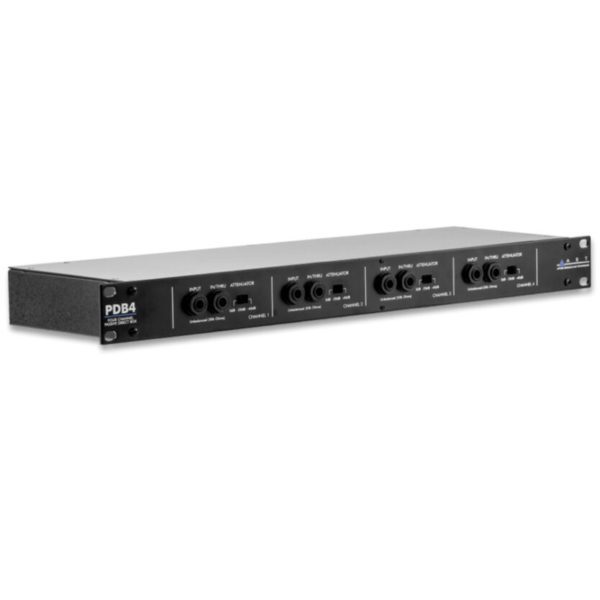

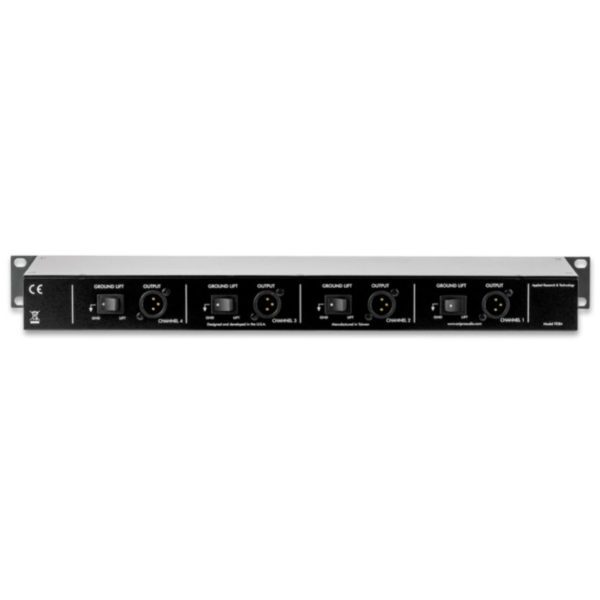

ART PDB4 Four Channel Passive Direct Box
Availability:
In stock
- Four Fully Isolated Channels
- Switchable Input Attenuation
- Switchable Ground Lift
- 1U 19-inch Chassis
$229.99
In stock
ART PDB4 Four Channel Passive Direct Box
| Weight | 2.3813599425 kg |
|---|---|
| Dimensions | 55.372 × 24.892 × 7.874 cm |
| brands | Art Pro Audio |
Specifications
| Frequency Response | 10 Hz – 50 kHz +/- 0.5dB @ +4dBu |
| Input Connections | ¼-inch TS unbalanced |
| Output Connections | XLR male balanced |
| Input Impedance | 50k Ω |
| Output Impedance | 600 Ω |
| Ground Lift | Switchable |
| Input Attenuation | Switchable (0dB, -20dB, -40dB) |
| Chassis Type | All steel black finish |
| Power Requirements | None Totally Passive |
| Dimensions | 44.5mm x 483mm x 152mm. |
| Weight | 2.95 kg |
Based on 0 reviews
Be the first to review “ART PDB4 Four Channel Passive Direct Box”
