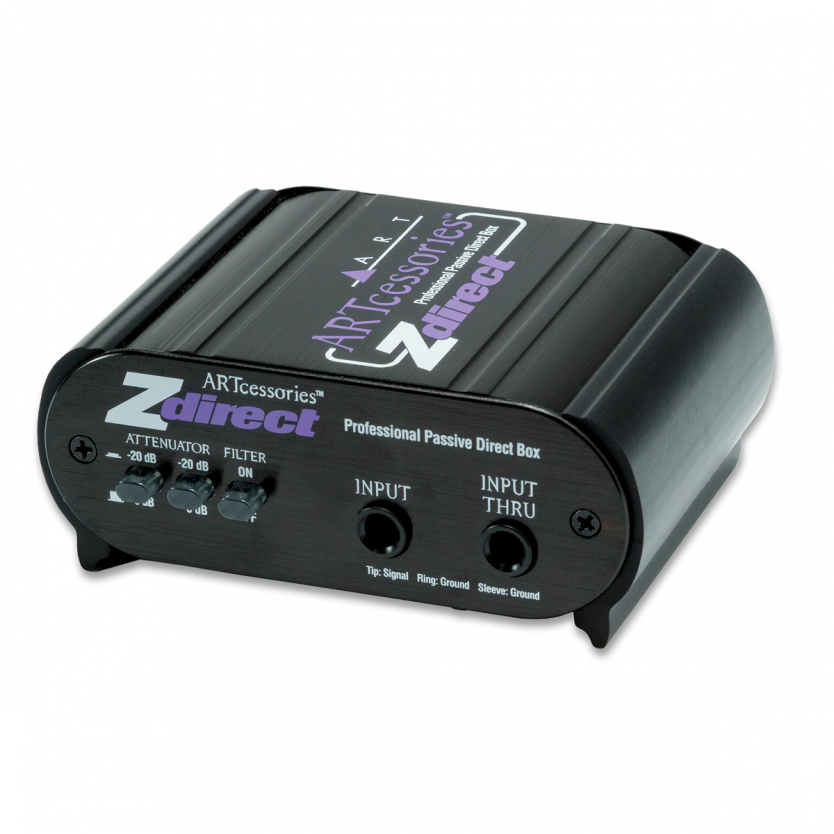

ART ZDirect Professional Passive Direct Box
Availability:
In stock
$79.99
In stock
ART ZDirect Professional Passive Direct Box
| Weight | 0.362873896 kg |
|---|---|
| Dimensions | 33.782 × 17.018 × 5.842 cm |
| brands | Art Pro Audio |
Specification
| Frequency Response | 10Hz -50kHz, +/-.5dB @ +4dBu |
| Total Harmonic Distortion | .01% Typical @ 1kHz, +18dBu, <.05% @ 100Hz, +18dBu |
| Input Connections | ¼ – inch TRS unbalanced, 50k Ω |
| Output Connections | XLR male balanced, 600 Ω |
| Output Phase | Switchable, Normal/Invert |
| Ground Lift | Switchable, fully isolates inputs from chassis and output |
| Input Attenuation | Switchable, (0dB, -20dB, -40dB) |
| Filter Type / Response | Switchable, Low Pass, -3dB @30kHz |
| Dimensions | 1.75″H x 4.2″D x 3.5″W (44.5mm x 107mm x 89mm) |
| Weight | 0.75 lbs (0.35 kg) |
Based on 0 reviews
Be the first to review “ART ZDirect Professional Passive Direct Box”
