ART LoopSwitch True Bypass Loop Switcher

Art Pro Audio
Availability:

Out of stock


  • Switch a whole chain of pedals on or off with one stomp
  • True bypass keeps your dry signal clean when the loop is off
  • Doubles as an A/B box for two amps or two rigs
  • Passive switching: works with no power at all
  • Optional status LED runs on any 5–18V pedal supply
  • Adds true bypass to vintage pedals without modding them

$99

Out of stock

The ART LoopSwitch is a compact true bypass loop switcher for guitarists and bassists who want to switch several pedals with one stomp, add true bypass to a vintage pedal, or flip between two rigs. It is a single-loop switcher, often listed as the ART Loop Switch, and it does one job simply and well.

How the ART LoopSwitch works

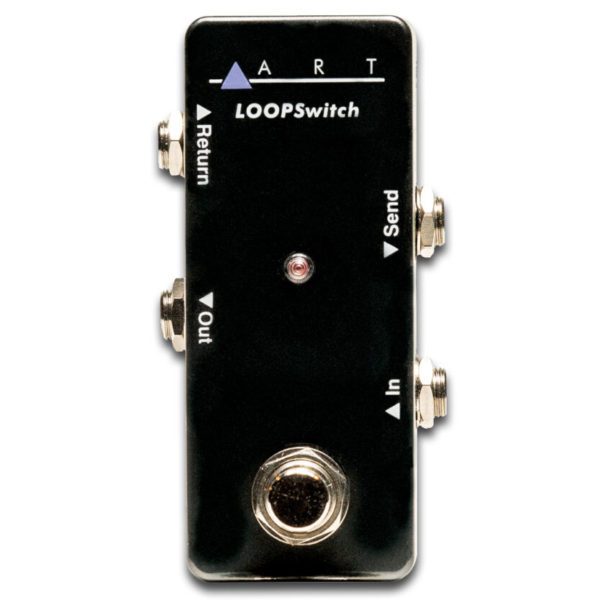

The pedal has four jacks: In, Out, Send and Return. With the switch off, your guitar signal travels straight from In to Out and skips everything in the loop. Press the switch and the signal leaves through Send, passes through whatever pedals you have patched into the loop, comes back through Return and carries on to Out. Anything you place between Send and Return turns on and off together.

Group several pedals under one switch

Live, the hardest part of a big pedalboard is tap-dancing on three or four switches at the start of a solo. Put your solo drive, delay and reverb inside the loop, set them up once, and the LoopSwitch brings the whole sound in with a single stomp. The same trick works for a modulation and ambience chain you only want in certain songs.

True bypass for vintage and valuable pedals

Many older pedals use buffered or “hard-wired” bypass that colours your tone or loads your pickups even when the effect is off. Placing one of those pedals in the LoopSwitch loop takes it fully out of the signal path when it is bypassed, so you get true bypass without opening the pedal or changing its original circuit. That matters if the pedal is collectible and you want to keep it stock.

Use it as an A/B box

Connect the Send jack to one destination and the Out jack to another, and the LoopSwitch becomes a simple A/B selector. Typical uses include:

  • Switching between two guitar amplifiers
  • Choosing between an electric rig and an acoustic rig or DI
  • Sending your signal to a tuner or a second effects chain

Note that this is A/B, not A+B: it sends the signal to one path or the other, not both at once.

Power: optional, only for the LED

The switching is fully passive, so the LoopSwitch works with no power connected. If you want the status LED to show whether the loop is on, plug in a standard 2.1 mm centre-negative pedal supply anywhere from 5 V to 18 V DC. It draws less than 3 mA, so it takes almost nothing from your power supply. The adapter is not included; a spare output on your existing supply is enough. See our power accessories if you need one.

Who is it for?

  • Good fit: players who want one extra “scene” switch on a small or medium pedalboard, owners of vintage pedals, and anyone who needs a basic A/B box for two amps or two rigs.
  • Good fit: bassists who want to bring a chain of effects in and out cleanly.
  • Not the best fit: players who need several independent loops, presets or MIDI control. A multi-loop programmable switcher suits that job better.

Single loop vs multi-loop switchers

Large programmable switchers store presets across many loops, but they cost more, take up more room and usually need power and setup. A single true bypass loop like the ART LoopSwitch is small, cheap, passive and has nothing to program, which makes it the easy way to tame one group of pedals. You can also use two or more LoopSwitch pedals on one board for separate groups. Browse our guitar effects pedals to build out your loop, or our guitar amplification range if you are setting up an A/B rig.

Key Features

  • True bypass single effects loop
  • In, Out, Send and Return jacks
  • A/B selector mode using the Send and Out jacks
  • Passive switching, no power needed to operate
  • Optional status LED powered by 5–18 V DC, 2.1 mm centre-negative
  • LED current draw under 3 mA
  • Adds true bypass to vintage pedals without modification
  • Compact pedalboard-friendly size

Why buy from 10dB

Orders leave the 10dB warehouse the same day as your purchase and travel by Australia Post, usually arriving within 3–5 days. Find more for your board in our instruments section.

FAQ

Does the ART LoopSwitch need a power supply?

No. The switching is passive and works without power. Power is only needed if you want the status LED to light up.

What power supply does the LED use?

A standard 2.1 mm centre-negative pedal supply between 5 V and 18 V DC. It draws less than 3 mA. No adapter is included.

Can I use it as an A/B box between two amps?

Yes. Run Send to one amp and Out to the other, and the footswitch chooses which one gets your signal. It switches between them; it does not feed both at the same time.

Will it change my tone?

When the loop is off, the signal goes straight from In to Out through the switch with no circuitry in the path, so there is nothing to colour your tone.

Does it work with bass?

Yes. It switches any instrument-level signal, so it works on bass boards as well as guitar.

How many pedals can I put in the loop?

As many as you like. Everything between Send and Return turns on and off together.

Weight 0.315 kg
Dimensions 5 × 15 × 8 cm
brands

Art Pro Audio

Specifications

Specification Details
Type True bypass loop switcher / A/B selector
Loops 1
Jacks In, Out, Send, Return
Switching Passive true bypass, no power required
LED power (optional) 5–18 V DC, 2.1 mm centre-negative
LED current draw Under 3 mA
Power adapter Not included
