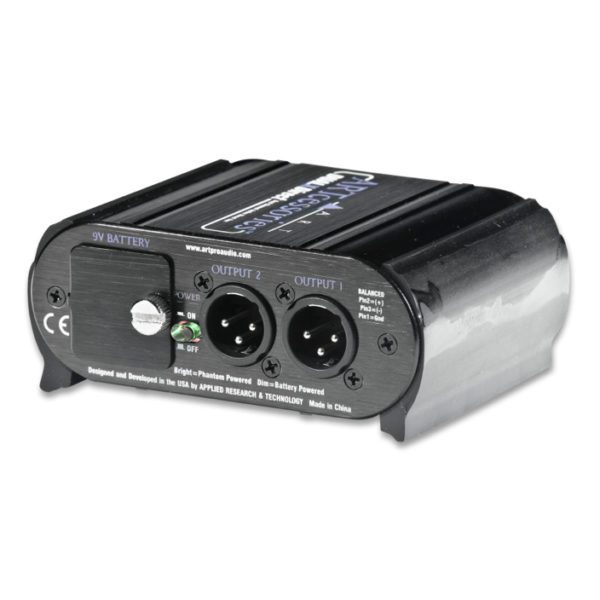

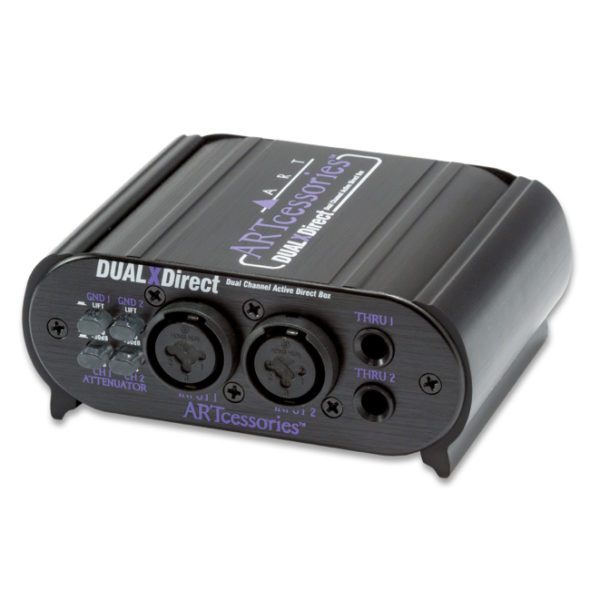

ART DUALXDirect Dual Channel Active Direct Box

Art Pro Audio
Availability:

In stock


  • Fully Active Design
  • Phantom Voltage or 9v Battery Powered
  • Rugged Extruded Aluminium Case

$129.99

In stock

ART DUALXDirect Dual Channel Active Direct Box

Weight 0.45359237 kg
Dimensions 33.782 × 16.764 × 1.016 cm
brands

Art Pro Audio

Specifications





Frequency Response 10 Hz – 100 kHz, ± 0.5 dB @ +0 dBu
Total Harmonic Distortion <.05% (typical)
Dynamic Range >100 dB (typical)
Channel Separation > 80 dB (typical)
Maximum Input Level +4, +34 dBu
Maximum Output Level +6 dBu (battery powered), +14 dBu (phantom powered)
Input Connections ¼-inch TRS | XLR female balanced / unbalanced (2), 470k Ω
Thru Connections ¼-inch TRS (2)
Output Connections XLR male balanced (2), <600 Ω
Input Attenuation Switchable, (0, -30 dB)
Power Requirements 9V @ 7.5 mA (battery,Alkaline recommended),
18 – 48V DC @ 6.4 mA (phantom power, per channel)
Dimensions 1.85″H x 4.6″W x 3.9″D (47mm x 117mm x 99mm)
Weight 0.38 kg
