Art Pro Audio, Installation, Live Sound, Zone Mixer

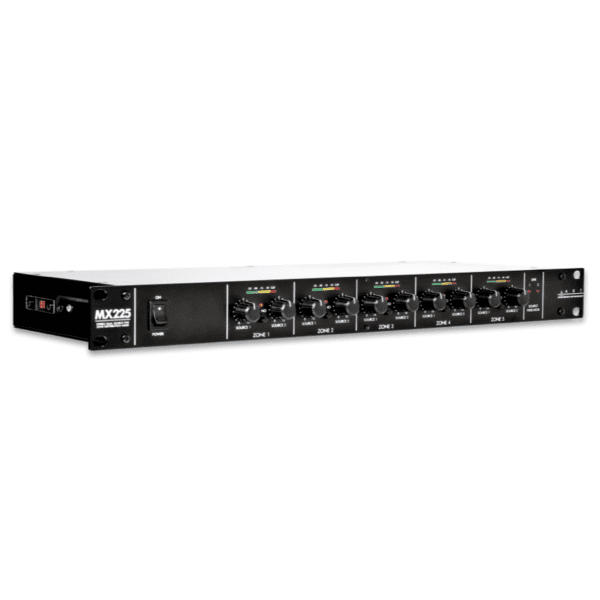

ART MX225 Stereo Dual Source Five Zone Distribution Mixer
Availability:
In stock
- Two Stereo Inputs Routed to Five Zones
- Source 1 & 2 Volume Knob on Each Zone
- 5-Segment LED Meter on Every Zone
- All Inputs & Outputs Are Balanced XLR
- Sum to Mono Buttons with LED Indicator
- Internal Power Supply
$509.99
In stock
ART MX225 Stereo Dual Source Five Zone Distribution Mixer
| Weight | 3.0163892605 kg |
|---|---|
| Dimensions | 53.34 × 26.67 × 8.89 cm |
| brands | Art Pro Audio |
Specification
| Inputs | 4 x Balanced XLR Female Inputs (2 Stereo Inputs) |
| Outputs | 10 x Balanced XLR Male Outputs (5 Stereo Zones) |
| Input Impedance | 47k Ohms |
| Output Impedance | 200 Ohms |
| Maximum Input Level | +20 dBu Balanced |
| Maximum Output Level | +24 dBu Balanced |
| Maximum Gain | +6 dB |
| # Of Rack Space | 1U (One Rack Space) |
| Signal to Noise Ratio | >90 dB Typical |
| Audio THD | .05% Typical |
| Power Requirements | USA – 105 to 125 VAC / 50-60 Hz, 15 Watts Typical |
| Dimensions | 1.75 x 19.0 x 7.25″ (44.5 x 483 x 184mm) |
| Weight | 5.34 lbs (2.42 kg) |
Packaging Info
| Package Weight | 6.65 lb |
| Box Dimensions (LxWxH) | 21 x 10.5 x 3.5″ |
