IK Multimedia TONEX Capture Tone Modeler and Re-Amp Box

Ik Multimedia
Availability:

In stock


  • Tone Modeling, Amp Recording & Re-Amping
  • Font-Panel 1/4″ Line Input and Amp Input
  • XLR Line Out, 1/4″ Cab Out, 1/4″ Amp Out
  • Preamp or Powered Signal Switch
  • Dual Gain Stage Level Attenuation
  • Ground Lift and Galvanic Isolation
  • Compatible with TONEX Ecosystem
  • Includes TONEX SE Software

$419.00

In stock



THE PERFECT ALL-IN-ONE COMPANION FOR TONE MODELLING AND RE-AMPLIFICATION

TONEX Capture is an all-in-one accessory that makes it easy to capture your real amp’s tone perfectly, with or without microphones.

It’s the ideal way to tone model your gear using the TONEX software, but also the perfect reamplification device.

  • Three accessories in one: Tone Modeling, amp recording and reamplification
  • Connects your audio interface to your amps and cabinets with the correct signal level
  • Capture your amp tone pre-cabinet without the need for microphones or load boxes
  • Ground lift and galvanic isolation eliminate hum and noise
  • Ideal for capturing Tone Models, also the perfect tool for reamplification
  • Comes with TONEX SE (includes 200 Tone Models)

There are two separate gain stages that allow you to adjust levels to and from your amp.

First, TONEX Capture connects to the output of your audio interface and allows you to feed that signal to your amp at just the right level using the left attenuation control.

Second, TONEX Capture connects to your amplifier’s line out (a speaker must be connected) or pedal output and allows you to feed that signal to your interface at the right level using the right attenuation control.

The end result is a pristine copy of your amp’s real tone, ready for TONEX modeling or any other use you can imagine.

Record your rig, your way

TONEX Capture gives you the freedom to capture your rig any way you want. Connect your amp, combo or pedal to your audio interface and use the TONEX Machine Modeling software to create a high-quality Tone Model of your rig you can use anywhere.

Download and share your favorite tones

TONEX Capture includes access to ToneNET, letting you upload your favorite tones and download limitless free tones from other users around the world.

For some extra inspiration, it also includes 200 Premium Tone Model downloads and free access to user generated Tone Models.

AI Machine Modeled Tone Model cloud and sharing community

  • Access a growing cloud of thousands of TONEX Premium Tone Models to demo and download inside TONEX software and TONEX App
  • Share and download FREE Tone Models with TONEX user community
  • Discover rare, one-of-kind amps, combos and pedals with just a few clicks
  • Demo any Tone Model before downloading
  • Browse countless FREE presets for TONEX and AmpliTube 5 from fellow users
  • Expand your Tone Model collection by upgrading to paid versions of TONEX Mac/PC and TONEX App

The TONEX Capture by IK Multimedia is a versatile tool that packs three essential accessories into one convenient box for the modern guitarist and home recordist. It provides an all-in-one solution for capturing a real amp’s tone with or without microphones. This tool is perfect for capturing tone models and is also ideal for reamplification. It features advanced AI machine modeling and ultra-quiet, hum-free output thanks to its ground-lift switches and galvanic isolation.

With the TONEX Capture, you can record your guitar rig any way you want. It allows you to feed signals directly to your amp and pedals or use your audio interface for a variety of different configurations and signal paths for cabs, amps, or pure AI modeling. The tool comes equipped with TONEX SE, which offers hundreds of premium tone model presets, and you can access thousands more via the ToneNET service.

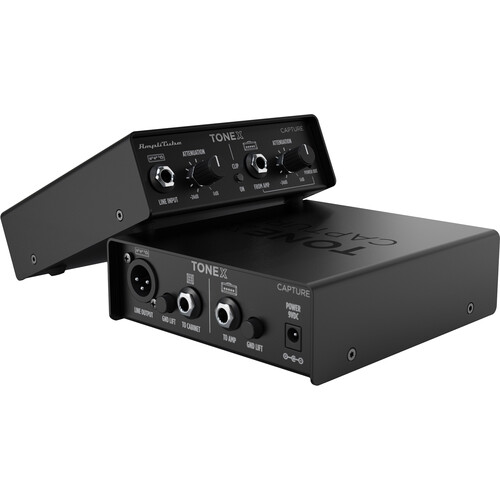

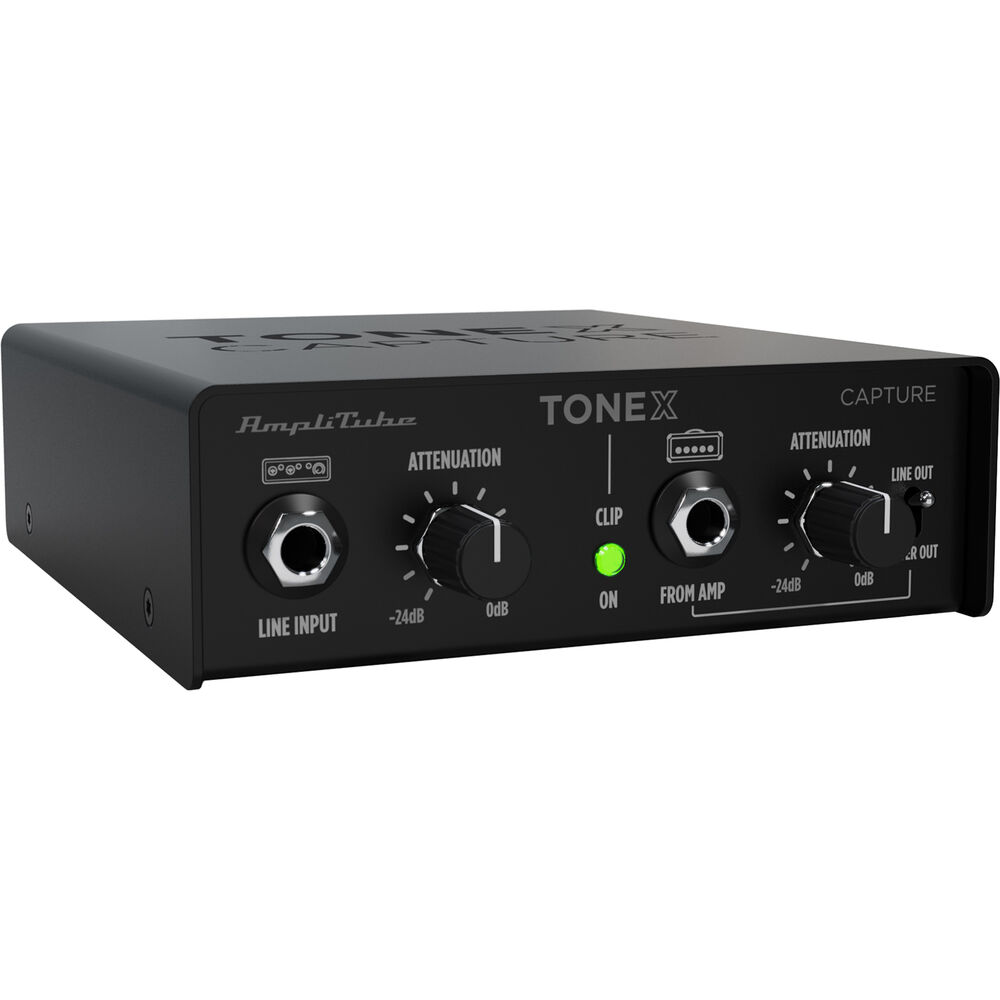

The TONEX Capture offers a range of input and output options specifically tuned for powerful amp modeling, reamplification, and recording. It features two separately adjustable gain stages, so you can record or capture your guitar in any way you can think of, anywhere you want to. It has one 1/4″ line input for audio interfaces, one XLR line output for balanced devices, a 1/4″ From Amp jack for connecting a direct output signal from an amp, a dedicated switch for selecting pre-amp output (Line Out) or powered output (Power Out) from amps, a 1/4″ output for connecting directly to guitar amps isolated from ground loops, and one 1/4″ output for connecting the Amp Out signal directly to a speaker cabinet. It also has ground-lift buttons for all outputs to further eliminate ground hum.

The TONEX Capture allows you to record your rig your way. You can use the Direct Amp setting to feed your amp with exactly the right signal. This tool captures the signal direct so that you can record anywhere without microphones or sound isolation. You can also use the Amp + Cab setting to mic up your cabinet as you prefer and capture your rig’s exact tone without sacrificing flexibility. The Amp + Cab Plus Direct setting offers the best of both worlds, as it lets you connect both direct amp and amp + cab for unrestrained freedom to build the ultimate guitar or bass tone. Additionally, you can use the Pedals setting to tone model pedals or route your recordings through your pedal collection for analog color and warmth.

The TONEX Capture comes equipped with TONEX SE software that includes 200 high-quality tone model presets, 20 amps, and 10 pedals for loads of creative inspiration. TONEX SE provides you with unlimited tone model creation, and you can download countless free tones from other users around the world via the ToneNET service, and upload your own tone creations as well.

Overall, the TONEX Capture is a complete ecosystem that is designed to fit into a complete TONEX ecosystem, with several powerful versions of the TONEX software to meet different needs. Choose the version that’s right for you with options for more tone model presets and more amp and pedal IRs.

Weight 1.3335616 kg
Dimensions 17.526 × 16.764 × 10.414 cm
brands

Ik Multimedia

Specifications

General

Compatibility IK Multimedia TONEX Pedal
IK Multimedia TONEX
IK Multimedia TONEX SE
IK Multimedia TONEX CS
IK Multimedia TONEX MAX

Inputs / Outputs

Audio I/O 1 x 1/4″ TS Line Input
1 x 1/4″ TS Hi-Z/Instrument/Line Input (From Amp)
1 x 1/4″ TS Output (To Cabinet)
1 x 1/4″ TS Hi-Z/Instrument Output (To Amp)
1 x XLR 3-Pin Line Output

Power

Power Source AC Adapter with Power Brick (Included)
DC Input Power 9 VDC

Physical

Color Black
Material of Construction Metal, Plastic
Dimensions Not Specified by Manufacturer
Weight Not Specified by Manufacturer
