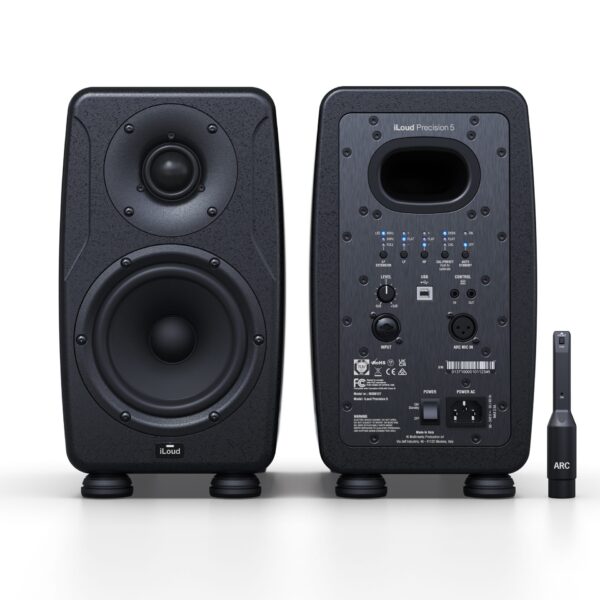

IK iLoud Precision 5 – Single Handcrafted 5″ Digitally Controlled Studio Monitor

Description

iLoud Precision series represents another breakthrough in nearfield monitoring from the company that revolutionized compact monitors with iLoud Micro Monitor and iLoud MTM.

These handmade works of sonic art reflect IK’s twenty five ‘plus’ years of expertise in loudspeaker design and digital signal processing, delivering a level of sonic detail that beats speakers at three times the price, with unique DSP-based features and software workflow enhancements that can’t be found anywhere else.

iLoud Precision 5 offers:

• 5″ ultralight coated paper mid-woofer
• 1.5″ high output, low distortion chambered textile dome tweeter
• Audiophile, custom-designed Class-D power amplifiers
• 135 W total RMS power
• Max SPL, peak, pair, music, 1 m: 114.5 dBA
• Complete DSP controlled system, 96 kHz sampling rate
• 46 Hz to 30 kHz frequency response +/- 1 dB
• 39 Hz low frequency extension @-4 dB
• Phase response: Coherent, 0/+20° max from 150 Hz up
• Phase rotation at 100Hz (with high pass filter off): 50° max
• Directivity (Vertical – all voices): +/-50°
• Directivity (Vertical – Wide Dispersion mode): +70°/-50°
• Continuous, long term SPL free field, 1 m distance, one speaker, fullband pink noise: 98.5 dB(A)
• Peak SPL free field, 1 m distance, one speaker, fullband pink noise: 104.5 dB(A)
• Peak SPL, half space, 1 m distance, one speaker, fullband pink noise: 106.5 dB(A)
• Maximum peak SPL, per pair, 1 m distance, music program: 114.5 dB(A)
• Crossover frequency: 2.1 kHz
• Crossover type: 8th order, linear phase
• LF Power amp (short term): 110 W
• HF Power amp (short term): 25 W
• Power amps distortion at nominal power: 0.005%
• Total latency or TOF: 2.5 ms
• Adjustable additional delay: 0-10 ms
• High pass filter: off, 35, 50, 65, 80 Hz
• LF contour: from -10 to +6 dB
• Desk contour: from -10 to 0 dB
• Mid contour: from -4 to +4 dB
• HF contour: from -6 to +6 dB
• Sentitivity: -4 dBu / 88 dBSPL
• Input gain trim: +/-5 dB
• Unit to unit consistency: +/-0.5 dB
• Operating temperature (non condensing): from 0 to 35 °C
• Coherent time response across the audio spectrum
• High performance vented design
• Built-in ARC room calibration
• X-MONITOR technology
• Remote control for X-MONITOR voice selection and measurement process control
• X-MONITOR macOS and Windows control software
• Handcrafted in Italy

Dimension and weight

• (H x W x D): 296 mm x 177 mm x 223 mm
• 6.1 kg

Package includes

• 1 x iLoud Precision 5 monitor
• Power cord
• ARC Microphone
• ARC Microphone clamp
• USB-B to USB-A 2.5m cable
• 1 x kit of 4 iLoud Isolation Pods
