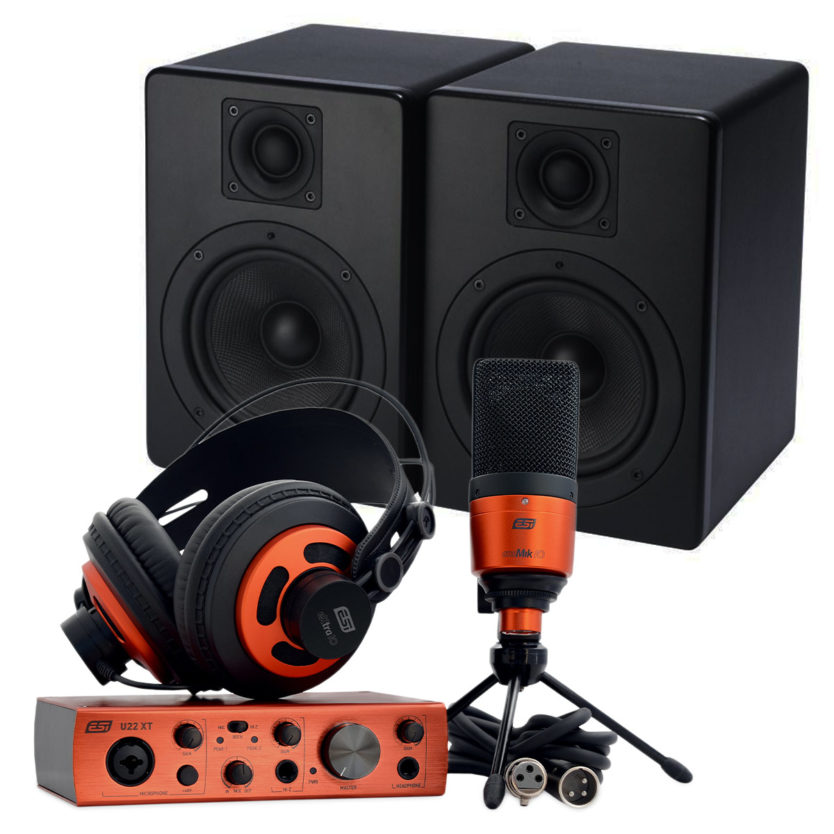

ESI U22 XT Ultimate Professional Studio Recording Bundle

Esi Audiotechnik
Availability:

Out of stock
Add to wishlist
Compare
  • 2 Input/2 Output
  • Microphone Preamp with Phantom Power
  • Hi-Z Input
  • Headphone Out with Volume Control
  • 24-Bit/96 kHz
  • USB Bus Powered
  • Mac, Windows

$649.00

Out of stock

Price Match

ESI U22 XT Ultimate Professional Studio Recording Bundle

SKU: ESIA_U22XTULTIMATE Categories: , , , , , , , , , , , , ,
Weight 11.6 kg
brands

Esi Audiotechnik

Specifications



AKTIV 05 STUDIO MONITOR SPEAKERS

Monitor Type Active 2-Way
Enclosure Bass-Reflex, Shielded
Power Rating 60 W
Drivers HF Driver: 1 x 1″ / 25.4 mm Silk Dome Tweeter
LF Driver: 1 x 5″ / 127 mm Kevlar Curved Cone
Amplification HF Amplifier: Rated at 30 W
LF Amplifier: Rated at 30 W

Performance

Frequency Range 50 Hz to 20 kHz
Maximum Sound Pressure Level (SPL) 88 dB
Total Harmonic Distortion (THD) 1%
Analog Input Sensitivity/Gain -5.4 dBu (Continuously Variable)

Crossover

Crossover Frequency 2.5 kHz
Connectivity
Audio I/O 1 x Combo XLR-1/4″ Balanced/Unbalanced Analog Input (23.3 Kilohms)

Power

AC Input Power 100 to 240 VAC, 50/60 Hz
Power Consumption 85 W

General

Dimensions (W x H x D) 6.9 x 9.8 x 7.9″ / 176 x 250 x 200 mm
Weight 9.9 lb / 4.5 kg

Packaging Info

Package Weight 10.495 lb
Box Dimensions (LxWxH) 13.2 x 10.2 x 9.8″

COSMIK10 CONDENSER MICROPHONE

Form Factor Stand/Boom Mount
Sound Field Mono
Operating Principle Pressure Gradient
Capsule 1 x Condenser
Diaphragm 1″ / 25.4 mm
Polar Pattern Cardioid
Orientation Side Address
Circuitry Solid-State
Pad None
High-Pass Filter None
Tone Adjustment None
Gain Adjustment None
Indicators None
On-Board Controls None
Windscreen Foam (Included)

Performance

Frequency Range 30 Hz to 18 kHz
Maximum SPL 135 dB SPL
Impedance 100 Ohms
Dynamic Range 132 dB
Equivalent Noise Level 5 dB A-Weighted

Connectivity

Output Connectors (Analog) 1 x XLR 3-Pin Male (on Mic)
Headphone Connector None

Power

Bus Power None
Operating Voltage 48 V (Phantom Power)

Physical

Mounting Desktop Stand, Mic Clip/Stand Adapter (Included)
Included Case None
Included Filters None
Weight 5.6 oz / 160 g

Packaging Info

Package Weight 1.3 lb
Box Dimensions (LxWxH) 10.6 x 4.8 x 2.8″

EXTRA 10 HEADPHONES

Earpiece Design Over-Ear (Circumaural), Semi-Open-Back
Earpiece Swivel No
Earpiece Connection / Wearing Style Headband
Foldable No
Driver Type Dynamic
Driver Size 2.0″ / 50 mm
Magnet Type Neodymium
Impedance 32 Ohms
Active Noise Cancellation No

Performance

Frequency Response 15 Hz to 29 kHz
Sensitivity 94 dB SPL at 1 mW
Maximum Power Handling 1200 mW

Wired Connectivity

Audio Connector to Source 1 x 1/8″ / 3.5 mm TRS Male
Adapter (Included) 1/4″ TRS
Cable Design Single-Sided
Audio Connector to Earpiece Not Specified by Manufacturer
Cable Length 8.2′ / 2.5 m

Physical

Color Black/Orange
Water Resistance None

Packaging Info

Package Weight 1.155 lb
Box Dimensions (LxWxH) 9.8 x 9.3 x 4.5″



U22 XT USB AUDIO INTERFACE

Form Factor Desktop
Channels of I/O 2 Input / 2 Output
Maximum Sampling Rate 96 kHz / 24-Bit
Number of Microphone Preamps 1 Preamp

Connectivity

Analog Audio I/O 1 x Combo XLR-1/4″ TRS Mic/Line Input
1 x 1/4″ TS Hi-Z Input
1 x Stereo RCA Line Input
1 x 1/4″ TRS Headphone Output
2 x 1/4″ TRS Output
Phantom Power 48 V
Digital Audio I/O None
Host Connection / USB USB Type-B
Host Connection Protocol USB 2.0
MIDI I/O None

Performance

Dynamic Range A/D Converters:
102 dBA
D/A Converters:
108 dBA

Digital Audio

Sample Rates Up to 96 kHz
Bit Depths 24-Bit (AD/DA Conversion)

Compatibility

OS Compatibility macOS 10.7 or Later
Windows Vista
Windows 7
Windows 8.1
Windows 10
*As of June, 2022: Check with manufacturer for the most up-to-date compatibility
Required Hardware Available USB 2.0 Port

Power

Power Requirements USB Bus Power

Physical

Dimensions 6.9 x 4.7 x 1.8″ / 175 x 120 x 45 mm

Packaging Info

Package Weight 1.7 lb
Box Dimensions (LxWxH) 9 x 5.8 x 3.2″
