ESI U22 XT Professional 24-bit USB Audio Interface

Esi Audiotechnik
Availability:

Out of stock


  • 2 Input/2 Output
  • Microphone Preamp with Phantom Power
  • Hi-Z Input
  • Headphone Out with Volume Control
  • 24-Bit/96 kHz
  • USB Bus Powered
  • Mac, Windows

$179.99 $199.99

Out of stock

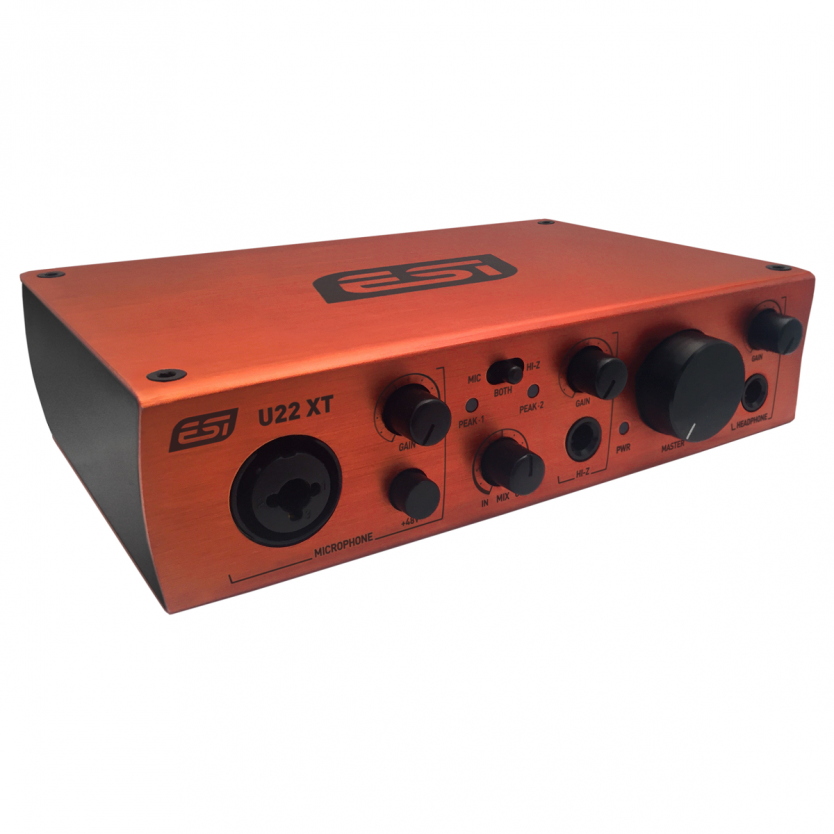

Introducing the U22 XT USB 2.0 Audio Interface by ESI: Your Gateway to High-Quality Sound

Unlock your creative potential with the U22 XT, a versatile two-input, two-output USB 2.0 audio interface. Boasting a comprehensive feature set, this compact unit is your key to professional audio production.

Key Features:

  1. Microphone Preamp with Phantom Power: Equipped with a microphone preamp that offers +48V phantom power, the U22 XT ensures that your vocal recordings shine with clarity and precision.
  2. Hi-Z Instrument Input: The 1/4″ Hi-Z instrument input accommodates guitars and other instruments, making it perfect for capturing your musical performances.
  3. High-Resolution Audio: With support for up to 24-bit/96 kHz resolution, you can expect pristine sound quality for your recordings.
  4. Versatile Connectivity: Connect your gear effortlessly with unbalanced line inputs on RCA connectors and balanced line outputs featuring 1/4″ TRS connectors.
  5. Headphone Output: The built-in headphone output enables private monitoring, ensuring you hear every detail of your audio.
  6. Low-Latency Drivers: Benefit from low-latency performance thanks to drivers supporting WDM, ASIO 2.0, and Core Audio, all powered by ESI’s EWDM and DirectWIRE technology.

Included Software:

  • Bitwig 8-Track DAW: Jumpstart your music production journey with Bitwig 8-Track, a powerful Digital Audio Workstation (DAW) that empowers you to create, perform, and design audio with ease.
  • Image-Line Deckadance LE: Dive into DJ-like performance with Image-Line Deckadance LE, offering another layer of creative possibilities.

USB Bus-Powered: The U22 XT is USB bus-powered, eliminating the need for an external power source and enhancing portability.

Elevate your audio production game with the U22 XT USB 2.0 Audio Interface. Whether you’re recording vocals, instruments, or crafting electronic music, this versatile interface equips you with the tools you need to achieve professional results. It’s time to bring your sound to life.

Weight 0.771107029 kg
Dimensions 22.86 × 14.732 × 8.128 cm
brands

Esi Audiotechnik

Specifications



Form Factor Desktop
Channels of I/O 2 Input / 2 Output
Maximum Sampling Rate 96 kHz / 24-Bit
Number of Microphone Preamps 1 Preamp

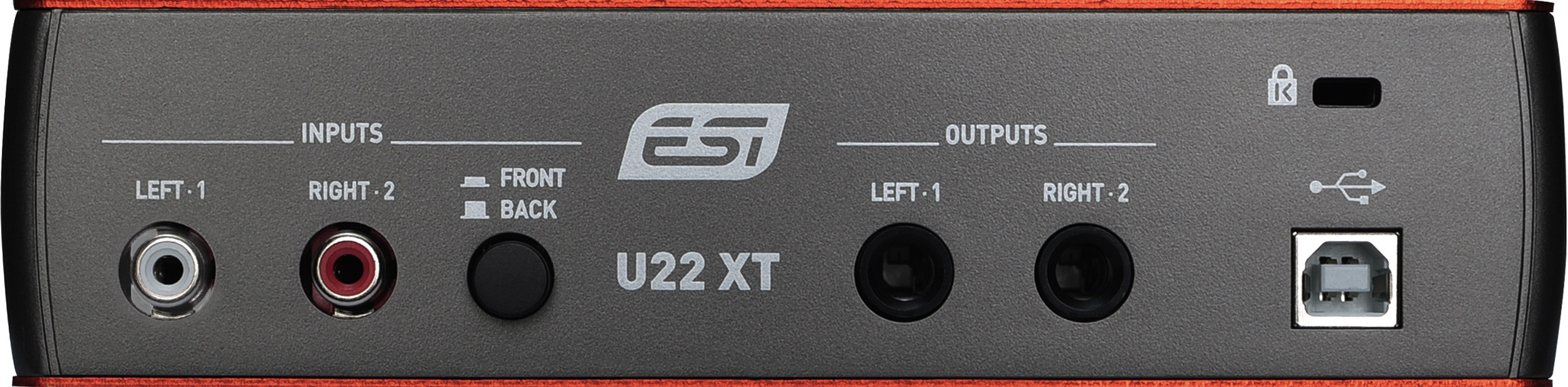

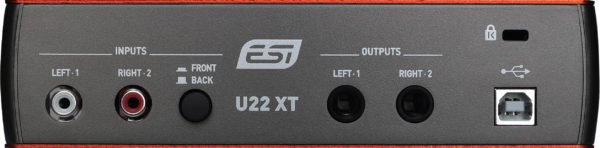

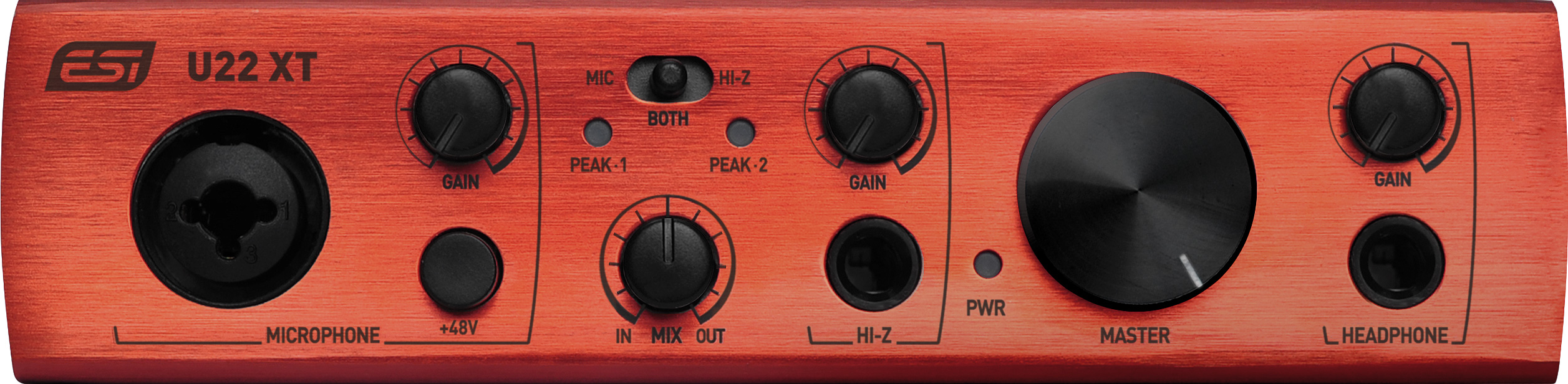

Connectivity

Analog Audio I/O 1 x Combo XLR-1/4″ TRS Mic/Line Input
1 x 1/4″ TS Hi-Z Input
1 x Stereo RCA Line Input
1 x 1/4″ TRS Headphone Output
2 x 1/4″ TRS Output
Phantom Power 48 V
Digital Audio I/O None
Host Connection / USB USB Type-B
Host Connection Protocol USB 2.0
MIDI I/O None

Performance

Dynamic Range A/D Converters:
102 dBA
D/A Converters:
108 dBA

Digital Audio

Sample Rates Up to 96 kHz
Bit Depths 24-Bit (AD/DA Conversion)

Compatibility

OS Compatibility macOS 10.7 or Later
Windows Vista
Windows 7
Windows 8.1
Windows 10
*As of June, 2022: Check with manufacturer for the most up-to-date compatibility
Required Hardware Available USB 2.0 Port

Power

Power Requirements USB Bus Power

Physical

Dimensions 6.9 x 4.7 x 1.8″ / 175 x 120 x 45 mm

Packaging Info

Package Weight 1.7 lb
Box Dimensions (LxWxH) 9 x 5.8 x 3.2″
