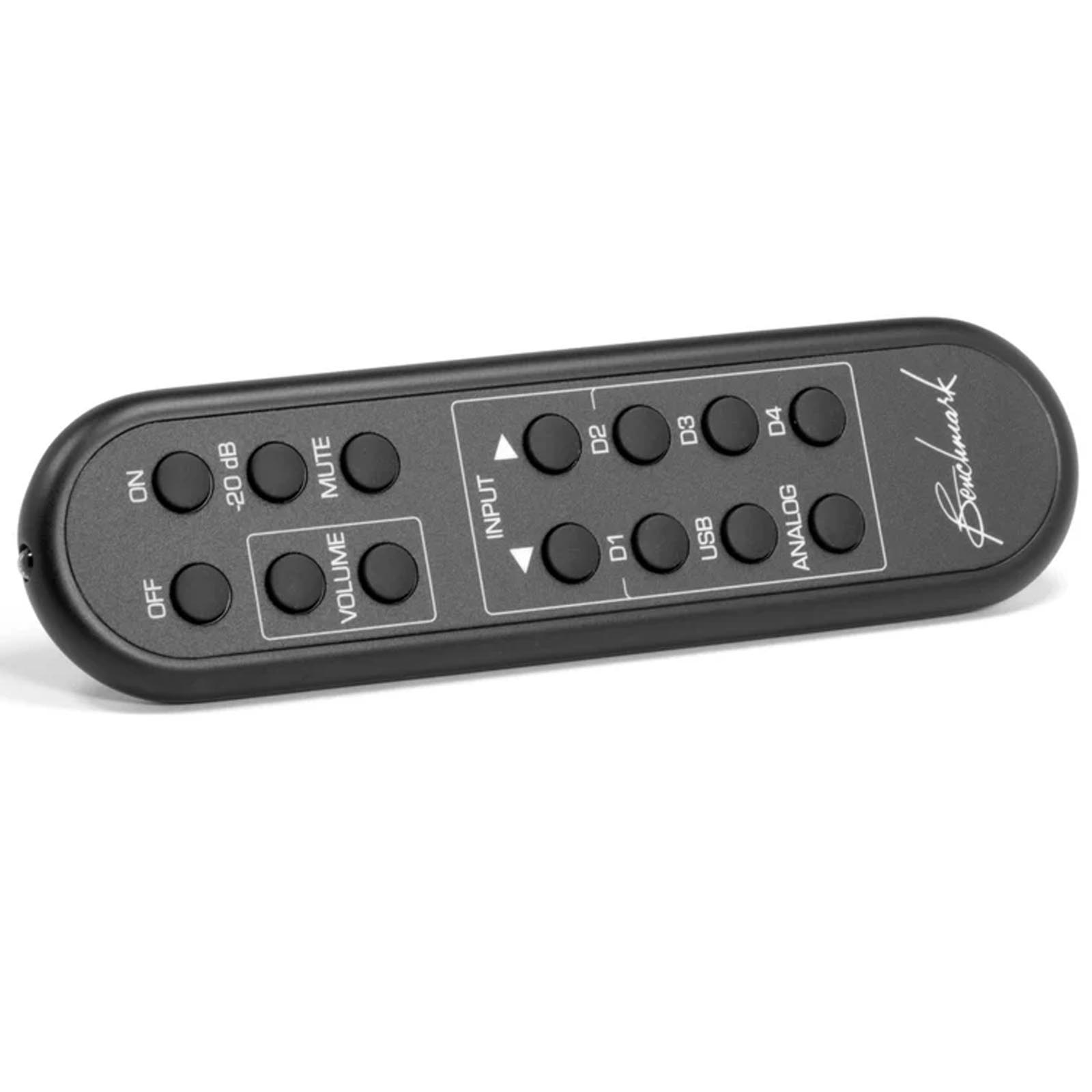

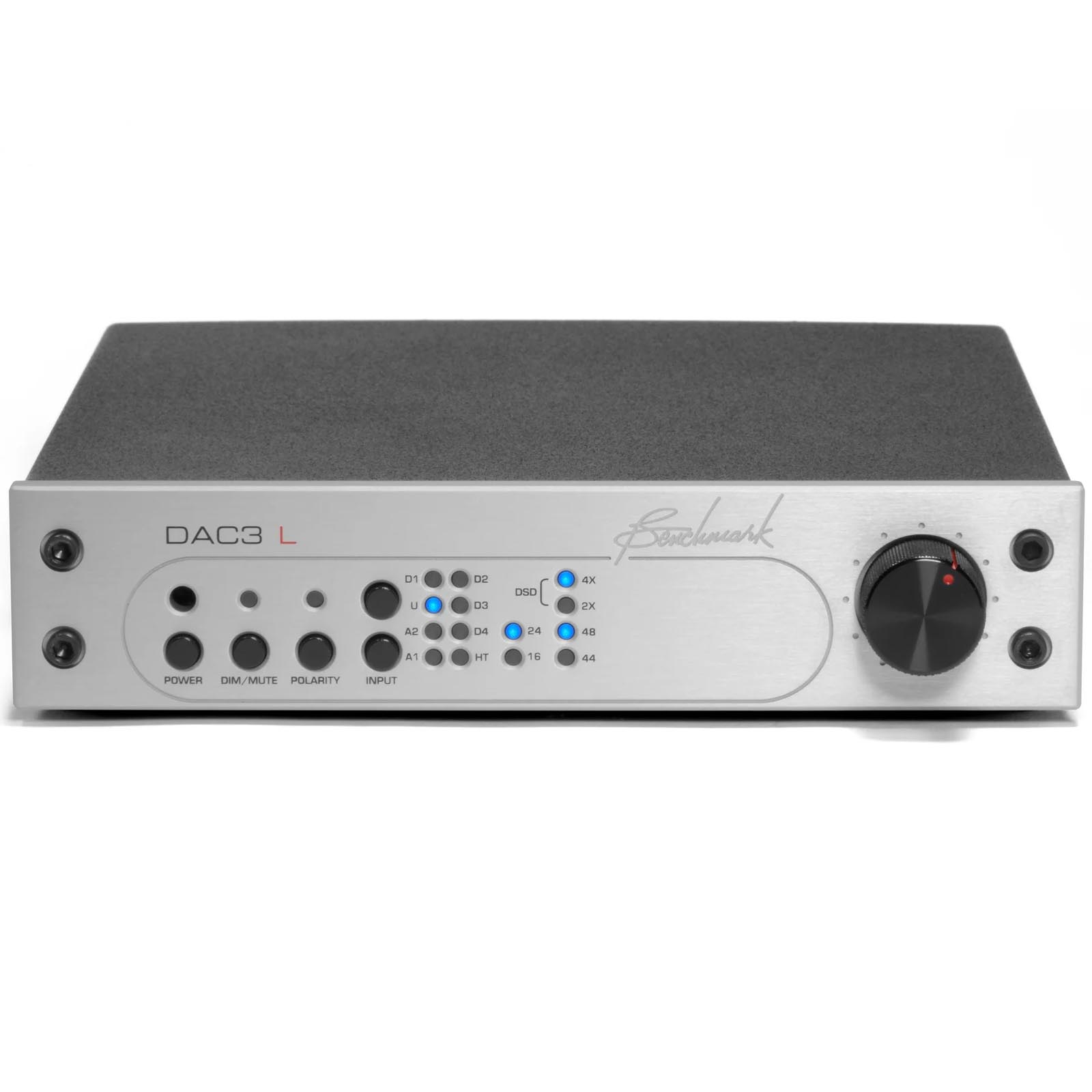

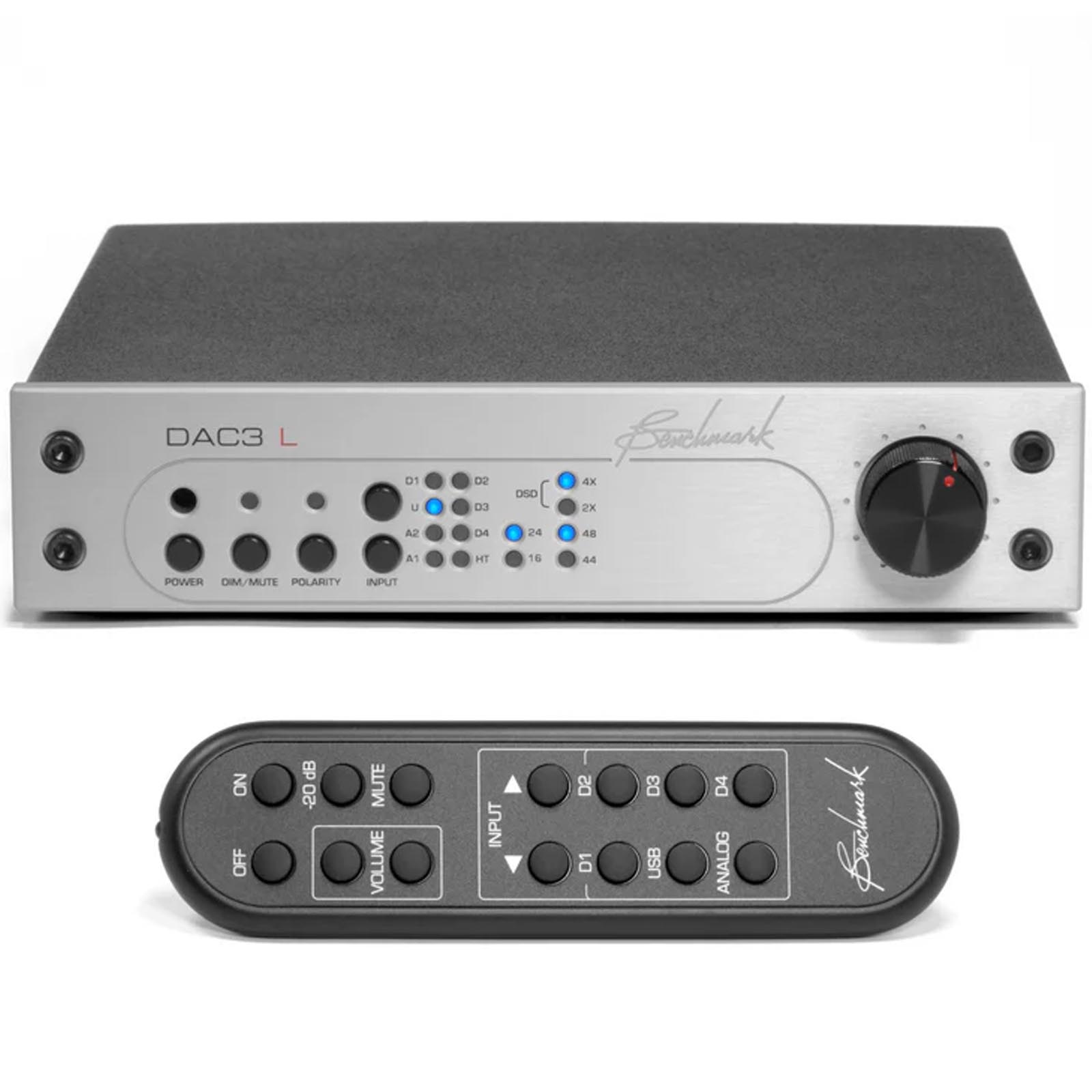

Benchmark DAC3 L – Silver – Stereo Preamp/ PCM & DSD D/A Converter/No Headphone Amp w/remote control

Benchmark
Availability:

In stock


  • Sample Rate Display
  • Word Length Display
  • 5 Digital Inputs
  • 2 Stereo Analog Inputs (2 RCA)
  • 3 Stereo Analog Outputs (2 RCA, 1 XLR)
  • Digital Pass Through
  • Native DSD Conversion

$3,599.00

In stock

Introduction

The Benchmark DAC3 L is the latest innovation in Benchmark’s esteemed line of digital-to-analog converters (DACs), building upon the legacy of the acclaimed DAC1 and DAC2 models. Incorporating the advanced ESS Technologies ES9028PRO converter chip, the DAC3 L delivers unprecedented levels of audio clarity and precision. This detailed guide explores the features, technological advancements, and performance enhancements of the Benchmark DAC3 L, establishing it as the new reference in high-fidelity audio.

Benchmark DAC3 L Overview

The Benchmark DAC3 L sets a new benchmark in the world of digital-to-analog conversion. It surpasses its predecessors, the DAC1 and DAC2, with significantly lower Total Harmonic Distortion (THD) and THD+N noise, thanks to the integration of the latest ES9028PRO converter chip. This converter is celebrated for its use in many of the world’s finest recording studios and mastering rooms, and it is now available to audiophiles seeking the highest quality audio reproduction at home.

Key Features and Benefits

1. Superior Audio Performance

The DAC3 L is engineered to deliver exceptional musical detail and precise stereo imaging. It features a high-headroom digital filter design and a high-sample-rate asynchronous USB audio interface. All inputs are fully isolated from interface jitter by Benchmark’s UltraLock3™ jitter attenuation system, ensuring a clean and accurate audio signal.

2. Advanced Digital Processing

Internal digital processing and conversion are executed at 32 bits, with an additional 3.5 dB of headroom above 0 dBFS. This headroom prevents DSP overloads that are common in other DACs, maintaining the integrity of the audio signal.

3. Balanced Analog Outputs

The DAC3 L employs four balanced 32-bit D/A converters summed together to create each balanced analog output. This 4:1 summation reduces noise by 6 dB, providing industry-leading performance and a more refined listening experience.

Technological Innovations

1. Harmonic Compensation

The ES9028PRO chip includes two distortion compensation systems that independently remove most of the 2nd and 3rd harmonic distortions. Benchmark’s clean analog output stages fully leverage these systems, resulting in the lowest THD among D/A converters.

2. Hybrid Gain Control (HGC)

Benchmark’s unique Hybrid Gain Control combines active analog gain control, passive low-impedance attenuators, a 32-bit digital gain control, and a servo-driven volume control. This sophisticated system ensures precise control and transparency, maintaining the natural sound of the audio without coloration.

3. UltraLock3™ Jitter Attenuation System

The UltraLock3™ system provides virtually perfect jitter attenuation with a locking time of just 6 ms, compared to 400 ms in previous models. This improvement eliminates any audible jitter artifacts, delivering a pure and accurate sound.

Improved Features Over DAC2

The DAC3 L includes several enhancements over the DAC2, such as:

  • Active 2nd and 3rd harmonic compensation
  • Lower THD+N and passband ripple
  • Improved frequency response and faster PLL lock times
  • Enhanced switching between input signals

Enhanced Connectivity and Usability

1. Native DSD Conversion

All digital inputs on the DAC3 L support native 192 kHz PCM or DSD64 conversion. The DAC3 L seamlessly switches between native PCM and DSD conversion, preserving the original quality of the music without any compromise.

2. Direct Connectivity to Power Amplifiers

Benchmark DACs are designed to directly drive power amplifiers and speakers. Adjustable low-impedance passive attenuators at the XLR outputs optimize the interface between the DAC and the power amplifier, enhancing the overall system performance.

3. Home Theater Integration

The DAC3 L can be seamlessly integrated into home theater systems, offering features like Home Theater Bypass, which sets the pass-through gain to unity when the surround system is active. This allows the DAC3 L to drive the left and right power amplifiers while integrating with the home theater system.

Studio-Quality Sound at Home

Benchmark’s DAC3 L is designed for maximum transparency, making it ideal for critical reference-quality professional systems. This transparency allows users to experience studio-quality sound in a home environment, hearing music exactly as the artists intended.

Cutting-Edge Technology

The DAC3 L incorporates several cutting-edge technologies, including:

  • Harmonic Compensation: Reduces 2nd and 3rd harmonic distortions.
  • UltraLock3™ Jitter Attenuation System: Provides fast and accurate jitter attenuation.
  • High-Headroom DSP: Handles signals as high as +3.5 dBFS, preventing clipping and distortion.
  • Quad 32-bit Balanced Conversion System: Delivers superior audio quality with reduced noise and distortion.

Conclusion

The Benchmark DAC3 L represents the pinnacle of digital-to-analog conversion technology, offering unmatched audio performance and a host of advanced features. Whether used in professional studio environments or high-fidelity home audio systems, the DAC3 L delivers an unparalleled listening experience, setting a new standard for audio excellence.

Weight 1.3 kg
Dimensions 4.4 × 22.9 × 23.5 cm
brands

Benchmark

Specifications

Audio Performance

Fs = 44.1 to 96 kHz, 20 to 20 kHz BW, 1 kHz test tone, 0 dBFS = +24 dBu (unless noted)
SNR – A-Weighted, 0 dBFS = +27 dBu 128 dB
SNR – Unweighted, 0 dBFS = +27 dBu 126 dB
THD+N, 1 kHz at 0 dBFS -113 dBFS, -113 dB, 0.00022%
THD+N, 1 kHz at -1 dBFS -114 dBFS, -113 dB, 0.00022%
THD+N, 1 kHz at –3 dBFS -119 dBFS, -116 dB, 0.00016%
THD+N, 20 to 20 kHz test tone at –3 dBFS -113 dBFS, -110 dB, 0.00032%
Frequency Response at Fs=192 kHz
  • +0 dB, -0.015 dB (20 to 20 kHz)
  • -0.015 dB at 10 Hz
  • -0.005 dB at 20 kHz
  • -0.031 dB at 40 kHz
  • -0.15 dB at 80 kHz
Frequency Response at Fs=48 kHz
  • +0 dB, -0.015 dB (20 to 20 kHz)
  • -0.015 dB at 10 Hz
  • -0.005 dB at 20 kHz
Crosstalk
  • -137 dB at 20 Hz
  • -130 dB at 1 kHz
  • -116 dB at 20 kHz
Maximum Amplitude of Jitter Induced Sidebands (10 kHz 0 dBFS test tone, 12.75 UI sinusoidal jitter at 1 kHz) < -144 dB
Maximum Amplitude of Spurious Tones with 0 dBFS test signal < -138 dB
Maximum Amplitude of Idle Tones < -147 dB
Maximum Amplitude of AC line related Hum & Noise < -133 dB
Inter-channel Differential Phase (Stereo Pair – any sample rate) +/- 0.25 degrees at 20 kHz
Inter-channel Differential Phase (Between DAC3 Units Fs<110 kHz) Any sample rate. +/- 0.25 degrees at 20 kHz
Maximum Lock Time after Fs change 6 ms
Soft Mute Ramp Up/Down Time 9.6 ms
Mute on Receive Error Yes
Mute on Lock Error Yes
Mute on Idle Channel No
50/15 us De-Emphasis Enable Automatic in Consumer Mode
De-Emphasis Method Digital IIR
De-Emphasis Supported at Fs = 32, 44.1, 48 kHz

Group Delay (Latency)

Delay – Digital Input to Analog Output (function of sample rate)







1.36 ms at 44.1 kHz

1.27 ms at 48 kHz

0.90 ms at 88.2 kHz

0.82 ms at 96 kHz

0.51 ms at 176.4 kHz

0.47 ms at 192 kHz

Digital Audio Inputs

Number of Digital Inputs (switch selected) 5 (1 USB, 2 Optical, 2 Coaxial)
Number of Channels 2
Input Sample Frequency Range 28 to 210 kHz (Coaxial Inputs)

28 to 96 kHz (Optical Inputs)

44.1, 48, 88.2, 96, 176.4, 192 kHz (USB Input)

Maximum Input Word Length 24 bits
Digital Input Impedance 75 Ohms (Coaxial Inputs)
DC Blocking Capacitors on Digital Inputs Yes (Coaxial Inputs)
Transient and Over-Voltage Protection on Digital Inputs Yes (Coaxial Inputs)
Minimum Digital Input Level 250 mVpp (Coaxial Inputs)
Jitter Tolerance

(With no Measurable Change in Performance)



>12.75 UI sine, 100 Hz to 3 kHz

>1.5 UI sine at 20 kHz

>1.5 UI sine at 40 kHz

>1.5 UI sine at 80 kHz

>1.5 UI sine at 90 kHz

>0.25 UI sine above 160 kHz

Jitter Attenuation Method Benchmark UltraLock3™ – all inputs

Balanced Analog Outputs

Number of Balanced Analog Outputs 2
Output Connector Gold-Pin Neutrik™ male XLR
Output Impedance 60 Ohms (Attenuator off)

425 Ohms (Attenuator = 10 dB)

135 Ohms (Attenuator = 20 dB)

Analog Output Clip Point +30 dBu
Factory Set Bypass Level (at 0 dBFS) +24 dBu (Attenuator = 0 dB)
Output Level Range (at 0 dBFS) In ‘Variable’ Mode Off to +27.5 dBu (Attenuator off)

Off to +17.5 dBu (Attenuator = 10 dB)

Off to +7.5 dBu (Attenuator = 20 dB)

Output Level Variation with Sample Rate (44.1 kHz vs. 96 kHz) < +/- 0.006 dB

Unbalanced Analog Outputs

Number of Unbalanced Analog Outputs 4
Output Connector RCA
Output Impedance 30 Ohms
Analog Output Clip Point +13.5 dBu (3.7 Vrms)
Factory Set Home Theater Bypass Output Level (at 0 dBFS) +8.2 dBu (2 Vrms)
Output Level Range (with 0 dBFS digital input) Off to +11.7 dBu (3 Vrms)
Output Level Variation with Sample Rate < +/- 0.006 dB

Status Display

Indicators – Type and Location 16 LED’s on Front Panel
Selection/Status Indication 1 – Dim/Mute

1 – Polarity
6 – Input
2 – Bypass/Calibrated Output
2 – Word length
4 – Sample Rate

AC Power Requirements

Nominal Input Operating Voltage Range (VAC RMS) 100 – 240V
Frequency 50-60 Hz
Power < 0.5 Watts Idle
12 Watts Typical Program
15 Watts Maximum
Fuses 5 x 20 mm (2 required)
0.5 A 250 V Slo-Blo® Type
Min/Max Operating range (VAC RMS) 90 – 260 VAC
47 – 63 Hz

Dimensions

Form Factor ½ Rack Wide, 1 RU High
Depth behind front panel 8.5” (216 mm)
Overall depth including connectors but without power cord 9.33” (237 mm)
Width 9.5” (249 mm)
Height 1.725” (44.5 mm)

Weight

DAC3 only 3 lb.
DAC3 with remote control, power cord, extra fuses, and manual 4 lb.
Shipping weight 7 lb.
