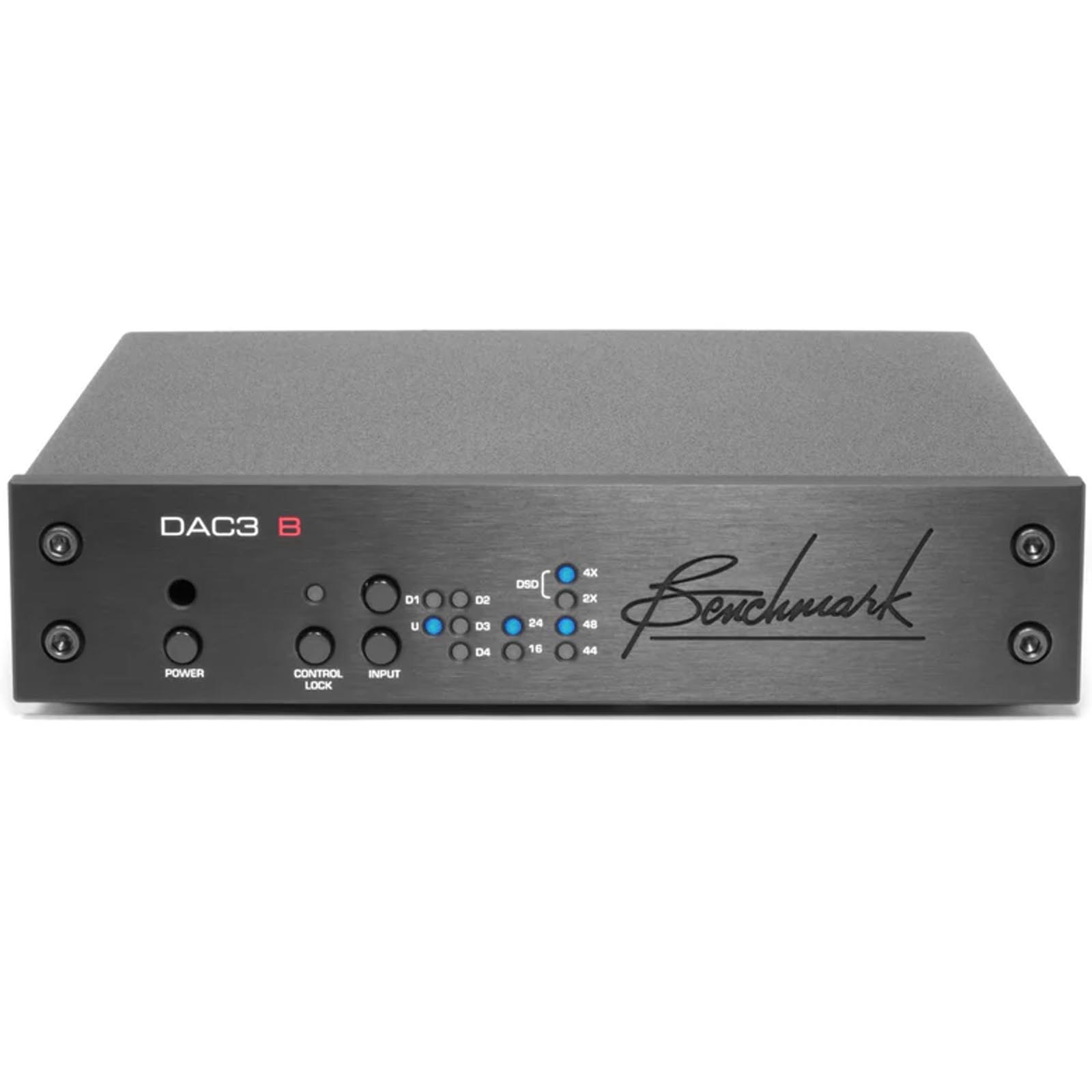

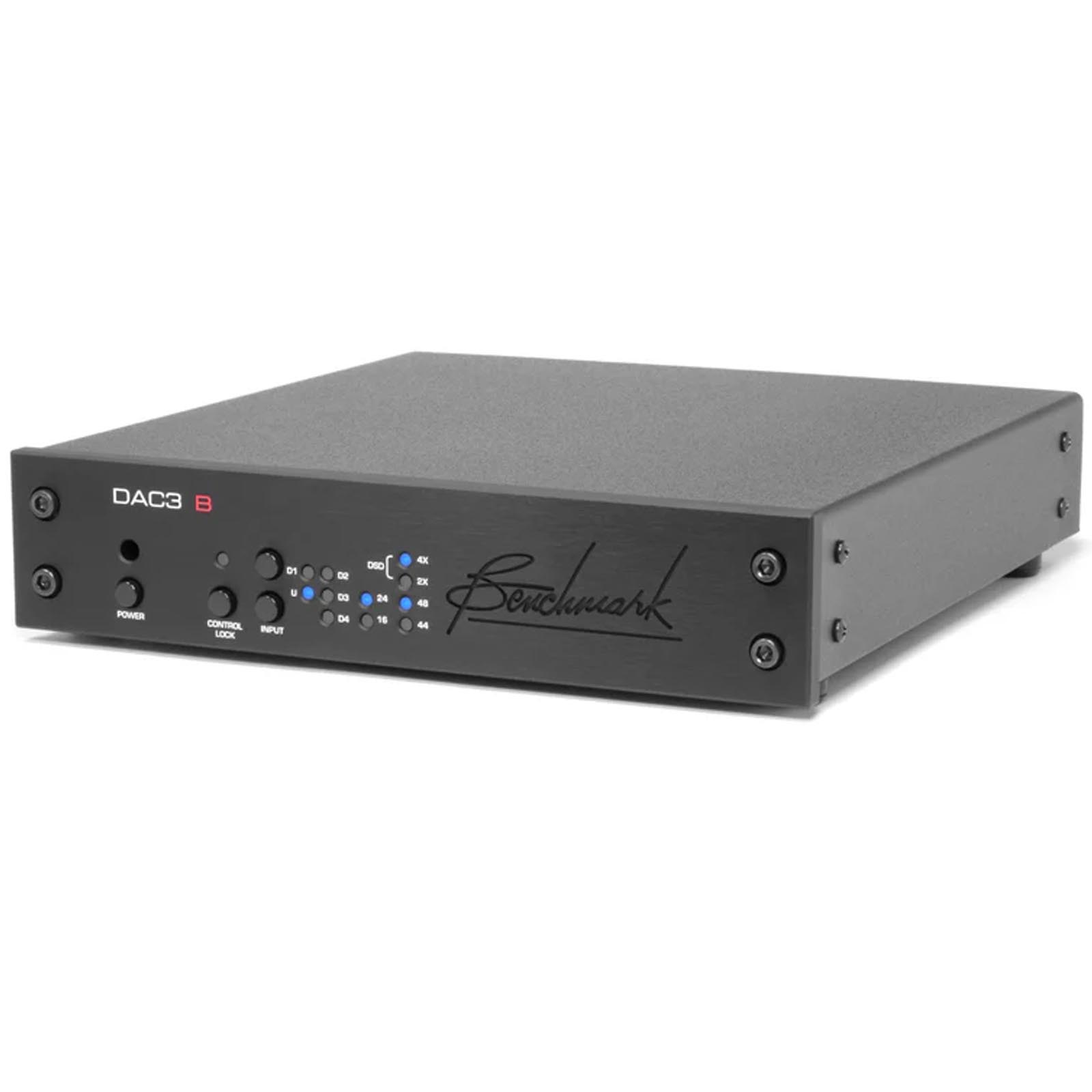

Introduction to the Benchmark DAC3 B

The Benchmark DAC3 B stands at the pinnacle of digital-to-analog conversion technology, representing the basic model in Benchmark’s acclaimed DAC3 series. Designed with uncompromising audio purity in mind, it delivers unmatched performance suitable for professional studio applications and audiophile environments alike.

Superior Audio Performance

Built upon the foundation of Benchmark’s renowned DAC2 series, the DAC3 B incorporates cutting-edge technology centered around the ESS Technologies ES9028PRO converter chip. This ensures exceptionally low Total Harmonic Distortion (THD) and THD+N noise, surpassing its predecessors and setting new standards in digital audio clarity.

Features and Specifications

  • ESS ES9028PRO Converter: Delivers pristine audio fidelity with lower THD and improved signal-to-noise ratio.
  • Advanced Digital Processing: Supports 32-bit internal processing with 3.5 dB of digital headroom, preventing DSP overloads and maintaining signal integrity.
  • UltraLock3™ Jitter Attenuation System: Ensures minimal jitter artifacts, achieving precise phase accuracy in just 6 milliseconds.
  • Quad 32-bit Balanced D/A Conversion: Summing four 32-bit D/A converters per channel reduces noise and distortion, offering unparalleled audio performance.
  • Asynchronous USB Audio: Supports high-resolution 192kHz playback and native DSD conversion, ensuring seamless integration with computer-based audio systems.

Studio-Grade Transparency

Benchmark DAC3 converters are celebrated for their transparency and neutrality, making them indispensable tools in professional studios worldwide. Unlike competitors that add coloration to audio, the DAC3 B faithfully reproduces recordings with unparalleled accuracy, preserving the artist’s intended sound.

Enhanced User Control and Integration

  • Remote Control: Includes IR remote compatibility and a control-lock feature for preventing unintended adjustments.
  • Integration Flexibility: Supports 12V trigger functionality and optional rack-mount installation, optimizing system integration in various setups.

Comparison with Previous Models

The DAC3 B builds upon the success of its predecessors by introducing active harmonic compensation, faster signal switching, and enhanced frequency response. It retains the familiar form factor and features of the DAC2 series while elevating performance to meet the demands of modern digital audio applications.

Ideal Applications

Ideal for critical listening environments and high-end home audio setups, the DAC3 B ensures that every nuance of the music is faithfully reproduced without distortion or alteration.

Conclusion

Embodying Benchmark’s commitment to excellence, the DAC3 B sets a new benchmark in digital-to-analog conversion. Whether in a professional studio or a discerning audiophile’s listening room, it provides a gateway to the purest form of audio reproduction available today.

Technical Specifications:

  • Dimensions: (Insert Dimensions in cm here)
  • Weight: (Insert Weight in kg here)
  • Power Consumption: 12W typical, ultra-low standby power consumption
  • Digital Inputs: Supports native 192 kHz PCM and DSD64 conversion
  • Outputs: Balanced analog outputs with 6 dB noise reduction

Experience the Benchmark Difference

Discover why Benchmark DAC3 converters are trusted by professionals and audiophiles alike for their uncompromising sound quality and innovative design. Transform your listening experience with the DAC3 B, where transparency meets perfection in digital audio reproduction.

SKU: BNMK_500-14800-830 Categories: , , , , , , , ,
Weight 1.3 kg
Dimensions 4.4 × 21.6 × 24.1 cm
brands

Benchmark

Specifications

Audio Performance
Fs = 44.1 to 96 kHz, 20 to 20 kHz BW, 1 kHz test tone, 0 dBFS = +24 dBu (unless noted)
SNR – A-Weighted, 0 dBFS = +24 dBu 125 dB, 128 dB relative to intersample peaks
SNR – Unweighted, 0 dBFS = +24 dBu 123 dB, 126 dB relative to intersample peaks
THD+N, 1 kHz at 0 dBFS -113 dBFS, -113 dB, 0.00022%
THD+N, 1 kHz at -1 dBFS -114 dBFS, -113 dB, 0.00022%
THD+N, 1 kHz at –3 dBFS -119 dBFS, -116 dB, 0.00016%
THD+N, 20 to 20 kHz test tone at –3 dBFS -113 dBFS, -110 dB, 0.00032%
Frequency Response at Fs=192 kHz
  • +0 dB, -0.015 dB (20 to 20 kHz)
  • -0.015 dB at 10 Hz
  • -0.005 dB at 20 kHz
  • -0.031 dB at 40 kHz
  • -0.15 dB at 80 kHz
Frequency Response at Fs=48 kHz
  • +0 dB, -0.015 dB (20 to 20 kHz)
  • -0.015 dB at 10 Hz
  • -0.005 dB at 20 kHz
Crosstalk
  • -137 dB at 20 Hz
  • -130 dB at 1 kHz
  • -116 dB at 20 kHz
Maximum Amplitude of Jitter Induced Sidebands (10 kHz 0 dBFS test tone, 12.75 UI sinusoidal jitter at 1 kHz) < -144 dB
Maximum Amplitude of Spurious Tones with 0 dBFS test signal < -138 dB
Maximum Amplitude of Idle Tones < -147 dB
Maximum Amplitude of AC line related Hum & Noise < -133 dB
Inter-channel Differential Phase (Stereo Pair – any sample rate) +/- 0.25 degrees at 20 kHz
Inter-channel Differential Phase (Between DAC3 Units Fs<110 kHz) Any sample rate. +/- 0.25 degrees at 20 kHz
Maximum Lock Time after Fs change 6 ms
Soft Mute Ramp Up/Down Time 9.6 ms
Mute on Receive Error Yes
Mute on Lock Error Yes
Mute on Idle Channel No
50/15 us De-Emphasis Enable Automatic in Consumer Mode
De-Emphasis Method Digital IIR
De-Emphasis Supported at Fs = 32, 44.1, 48 kHz

Group Delay (Latency)
Delay – Digital Input to Analog Output (function of sample rate)







 1.36 ms at 44.1 kHz

1.27 ms at 48 kHz

0.90 ms at 88.2 kHz

0.82 ms at 96 kHz

0.51 ms at 176.4 kHz

0.47 ms at 192 kHz

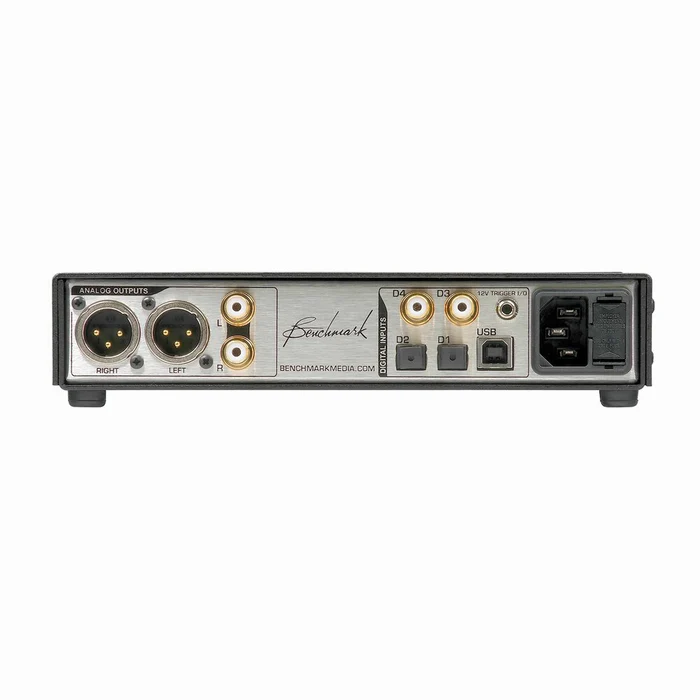

Digital Audio Inputs
Number of Digital Inputs (switch selected) 5 (1 USB, 2 Optical, 2 Coaxial)
Number of Channels 2
Input Sample Frequency Range 28 to 210 kHz (Coaxial Inputs)

28 to 96 kHz (Optical Inputs)

44.1, 48, 88.2, 96, 176.4, 192 kHz (USB Input)
Maximum Input Word Length 24 bits
Digital Input Impedance 75 Ohms (Coaxial Inputs)
DC Blocking Capacitors on Digital Inputs Yes (Coaxial Inputs)
Transient and Over-Voltage Protection on Digital Inputs Yes (Coaxial Inputs)
Minimum Digital Input Level 250 mVpp (Coaxial Inputs)
Jitter Tolerance

(With no Measurable Change in Performance)



 >12.75 UI sine, 100 Hz to 3 kHz

>1.5 UI sine at 20 kHz

>1.5 UI sine at 40 kHz

>1.5 UI sine at 80 kHz

>1.5 UI sine at 90 kHz

>0.25 UI sine above 160 kHz
Jitter Attenuation Method Benchmark UltraLock3™ – all inputs

Balanced Analog Outputs
Number of Balanced Analog Outputs 2
Output Connector Gold-Pin Neutrik™ male XLR
Output Impedance 60 Ohms (Attenuator off)

425 Ohms (Attenuator = 10 dB)

135 Ohms (Attenuator = 20 dB)
Analog Output Clip Point +30 dBu
Factory Calibration (at 0 dBFS) +24 dBu (Attenuator off)
Output Level Variation with Sample Rate (44.1 kHz vs. 96 kHz) < +/- 0.006 dB

Unbalanced Analog Outputs
Number of Unbalanced Analog Outputs 2
Output Connector RCA
Output Impedance 30 Ohms
Analog Output Clip Point +13.5 dBu (3.7 Vrms)
Factory Calibration (at 0 dBFS) +8.2 dBu (2 Vrms)
Output Level Variation with Sample Rate < +/- 0.006 dB

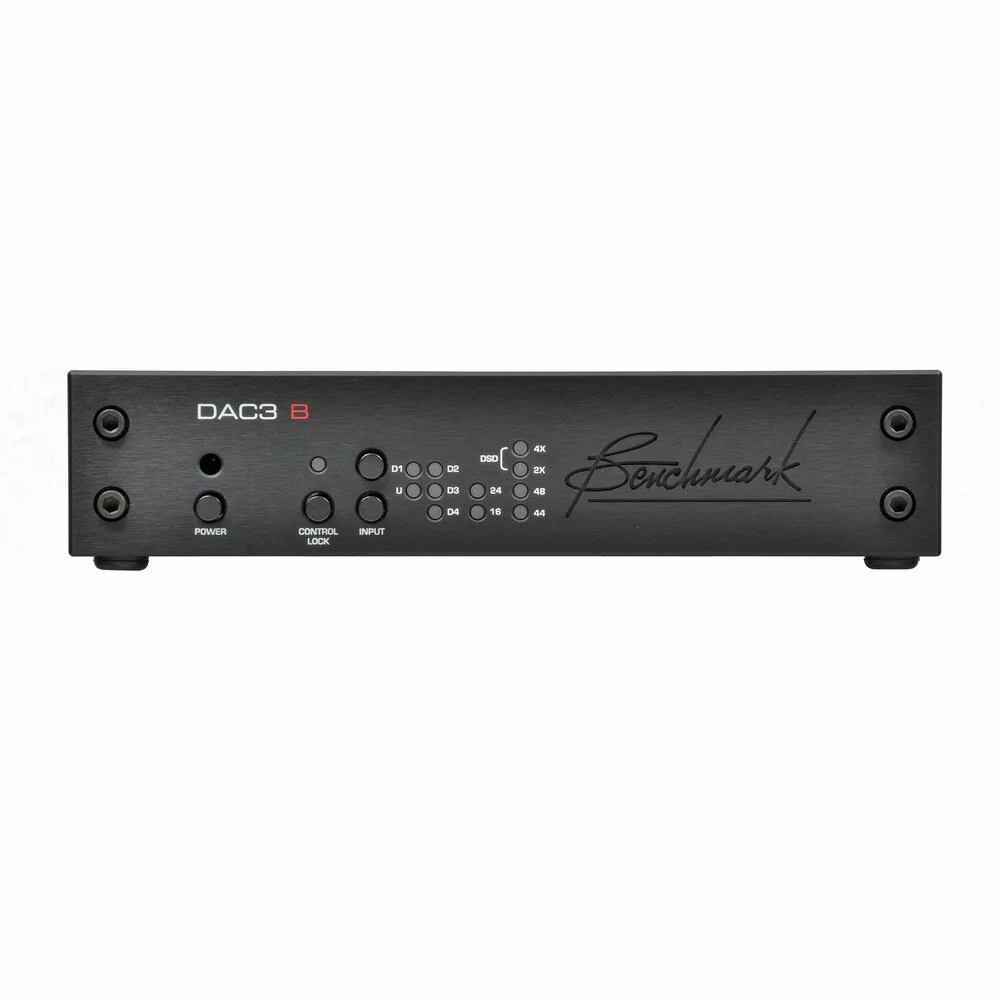

Status Display
Indicators – Type and Location 12 LED’s on Front Panel
Selection/Status Indication 1 – Control Lock

5 – Input

2 – Word length

4 – Sample Rate

AC Power Requirements
Nominal Input Operating Voltage Range (VAC RMS) 100 – 240V
Frequency 50-60 Hz
Power < 0.5 Watts Idle
12 Watts Typical Program
13 Watts Maximum
Fuses 5 x 20 mm (2 required)
0.5 A 250 V Slo-Blo® Type
Min/Max Operating range (VAC RMS) 90 – 260 VAC
47 – 63 Hz

Dimensions
Form Factor ½ Rack Wide, 1 RU High
Depth behind front panel 8.5” (216 mm)
Overall depth including connectors but without power cord 9.33” (237 mm)
Width 9.5” (249 mm)
Height 1.725” (44.5 mm)

Weight
DAC3 only 1.36 kg.
DAC3 with remote control, power cord, extra fuses, and manual 1.8 kg.
Shipping weight 3.18 kg.
