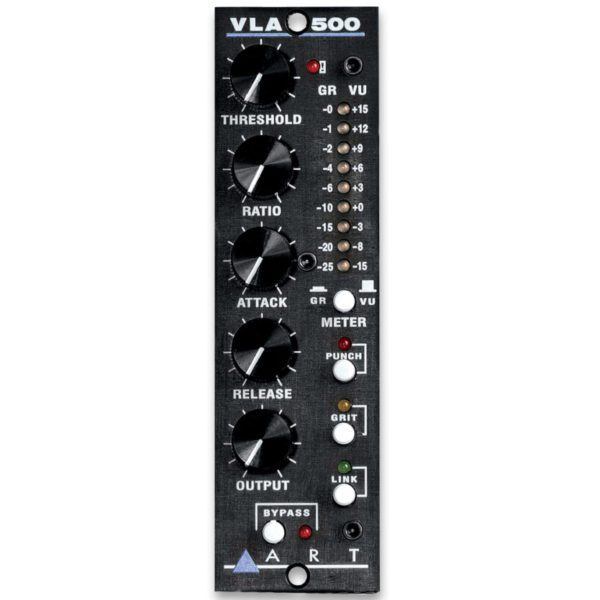

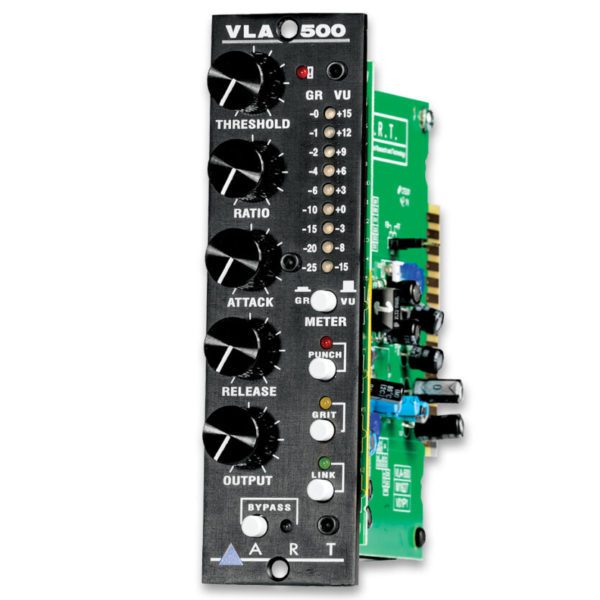

ART VLA-500 Series Form Factor Vactrol Compressor Module

Art Pro Audio
Availability:

Out of stock


  • 500 Series Form Factor Compressor Module
  • VCA-less Vactrol Opto-Compressor Design
  • Stereo / Multi-Channel Linkable
  • LED Metering

$539.99

Out of stock

ART VLA-500 Series Form Factor Vactrol Compressor Module

Weight 0.317514659 kg
Dimensions 16.764 × 3.7846 × 13.2842 cm
brands

Art Pro Audio

Specifications



Equivalent Input Noise -102dBu (‘A’ weighted)
Input Impedance 10K Ω
Output Impedance 100 Ω
Inputs Level +20dBu
Output Level +20dBu
Output Gain +20dB max
Frequency Response 20Hz to 100KHz (+/- 0.5dB)
Dynamic Range >120dB (20-20KHz)
Attack Time 0.25msec. to 50msec. variable
Release Time 150msec. to 3 sec, variable
Slope Variable: 2:1 to 20:1
Total Harmonic Distortion <0.003% (@1kHz, typical)
Power Requirements 80mA (75mA @+ 15V, 4mA@48V)
Max Gain Reduction 30dB
Dimensions 133mm H x 38mm W x 168mm D
Weight 0.32kg
