ART USB IV 4in/4out USB Audio Interface

Art Pro Audio
Availability:

In stock
Add to wishlist
Compare
  • Four versatile combo XLR/¼” inputs
  • High-resolution 32-bit audio quality
  • MIDI I/O for digital instruments
  • USB-powered, no external power needed
  • Real-time low-latency monitoring

$419.00 $499.00

In stock

Price Match

ART USB IV 2in/4out Digital Interface

INSTANT INSPIRATION
The audio interface companion for artists, producers and podcasters looking to set up a creative recording space.

The USB Pre IV is a high quality 4 input / 4 output 192kHz capable digital interface.  The inputs can accommodate any combination of uses including 4 microphone inputs or two high Z instrument and two line inputs.

It’s capable of sample rates from 44.1kHz to 192kHz for computer input. USB audio is converted using high quality bit stereo DAC to analog audio. Custom transformers remove ground loops and other system noise between the digital and analog noise between the digital and analog audio systems

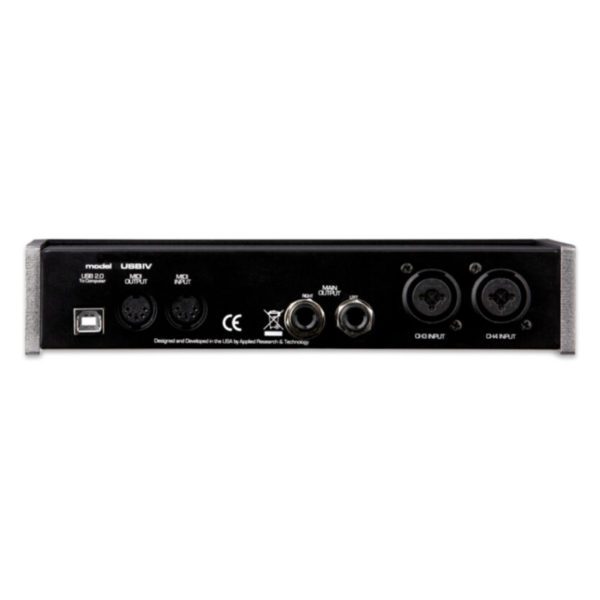

The USB PRE IV is equipped with two pairs of stereo outputs. Connect your studio monitors through the 1⁄4-inch Main Outputs (OUT1/2) on the rear panel using quality cables. Headphones can be used for personal monitoring through the stereo TRS Headphone jack (OUT3/4) on the front panel. Press the Input Monitor button to listen to the signal directly from the inputs.

It provides both MIDI IN and MIDI OUT via rear panel connections. The sample rate is set via the USB interface and its low latency ASIO/WDM driver.

READY TO RECORD

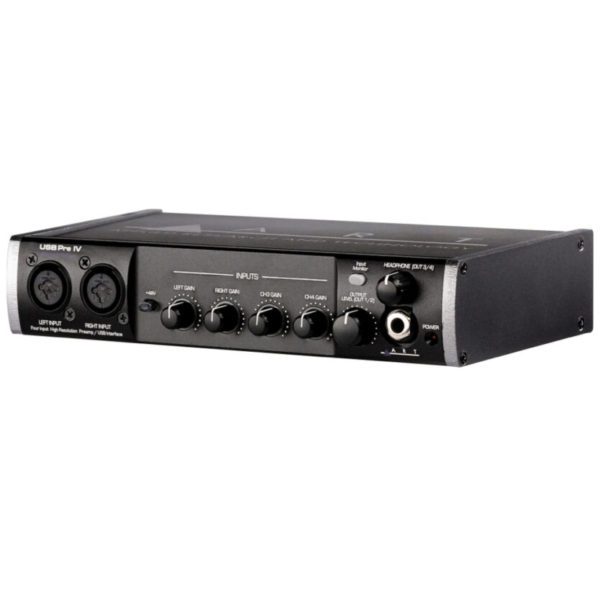

With CUBASE LE Software and USB cable included, the USB Pre IV is fully loaded for recording out of the box. The front panel headphone output and illuminated input gain knobs allow for on the spot monitoring.

SIMPLE. PROFESSIONAL. AFFORDABLE.
Easily connect any mic, line, or instrument into your recording device.
High quality converters and low latency result in professional clarity
and resolution within the scope of any recording project.

  • High Quality A/D to D/A convertors
  • Sample rates from 44.1k to 192kHz
  • Low latency ASIO and WDM driver
  • Transformer isolated outputs
  • Front panel input monitoring switch
  • Low noise discrete mic preamps
  • High Z instrument inputs
  • Zero latency monitoring
  • Front panel headphone output
  • MIDI input/output
SKU: ARTP_USBIV Categories: , , ,
Weight 0.97 kg
Dimensions 15.7 × 4.4 × 22.2 cm
brands

Art Pro Audio

Specifications



Input Connections: 4 – XLR/1/4-inch combo jacks,
USB 1.0/2.0, MIDI DIN 5
Output Connections: Transformer isolated Balanced
1/4-inch,1/4-inchHeadphone output
MIDI output
Max input level: +15dBu Inst.,19dBu Bal. Line,
+3.5dBu mic
Input Impedance: >1M Ohms 1/4-inch input, >7k
Ohms XLR input
Max output level: +8dBu (CH1/2), +6.5dBu (CH3/4)
Output Impedance: 600 Ohms (balanced 1/4-inch), 32
Ohms (headphone stereo 1/4-inch)
Headphone output: 60mW/ channel maximum
Frequency Response: 20Hz to 20KHz +/- 1dB
THD: <0.002% 20-20k, ADC-USB +
USB-DAC
CMRR: >87dB(mic), 60dB(line)
Channel Separation: >75 dB
Signal to Noise Ratio: >ADC: 115dB, DAC: 110dB
Equiv. Input Noise: -128dBu typical (XLR balanced,
gain @ maximum)
Phantom Power: Switch selectable, +48Volts DC,
filtered, current limited
A/D-D/A: 32 Bit, 44.1 kHz to 192 kHz,
USB selectable from computer
Computer Interface: USB class compliant plug-and-play
Mac and PC interface
Power Requirements: USB 2.0, 500mA
Dimensions (HWD): 8.75-inch x 1.75-inch x 6.2-inch
(222mm x 44mm x 157mm)
Weight: 2.15 lbs. (.974kg)
Chassis Type: All aluminum
