Name: ART TUBE MIX Five Channel Stereo USB Mixer
SKU: ARTP_TUBEMIXU
Availability: InStock

Specifications

Input Impedance	Microphone: 3.5k Ω Line (CH1, CH2, CH3/4), 10k Ω CH5 (Inst.), 1M Ω
Output Impedance	Main, Control Room (Balanced/Unbalanced), 150/100 Ω AUX Outputs, 150 Ω Headphones, 100 Ω
Frequency Response	20-100kHz + 1dB
Maximum Input Level	CH1, CH2 (Mic), +9dBu CH1 CH2 (Line In), +20dBu CH3/4 (EQ Flat), +20dBu CH5 (EQ Flat), +16dBu AUX Return, +24dBu
Maximum Output Level	Main, Control Room (Balanced, Unbalanced), +20dBu/+17dBu Aux Send, +20dBu Headphones, 100mW / Ch @ 300 Ω, 50mW /Ch @32 Ω
Maximum Gain	LINE IN to Main output (balanced), +63dB CH 5 to Main output (balanced), 56dB CH3/4 to Main output (balanced), +30dB
Equivalent Input Noise	Microphone (@max gain), 127dBu “C”wtd. Line (@max gain), -105dBu “C” wtd. Instrument (@ max gain), -112dBu “C” wtd.
USB Computer Interface	USB class compliant plug-and-play Mac and PC interface
A/D, D/A	16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
Phantom Power	Switch selectable, +48V DC, filtered, current limited
Power Requirements	18 VAC, 1000mA
Dimensions	3.3″H x 7.8″W x 10.4″D (84mm x 198mm x 265mm)
Weight	5.5 lbs (2.5 kg)
Note	0 dBu = 0.775Vrms

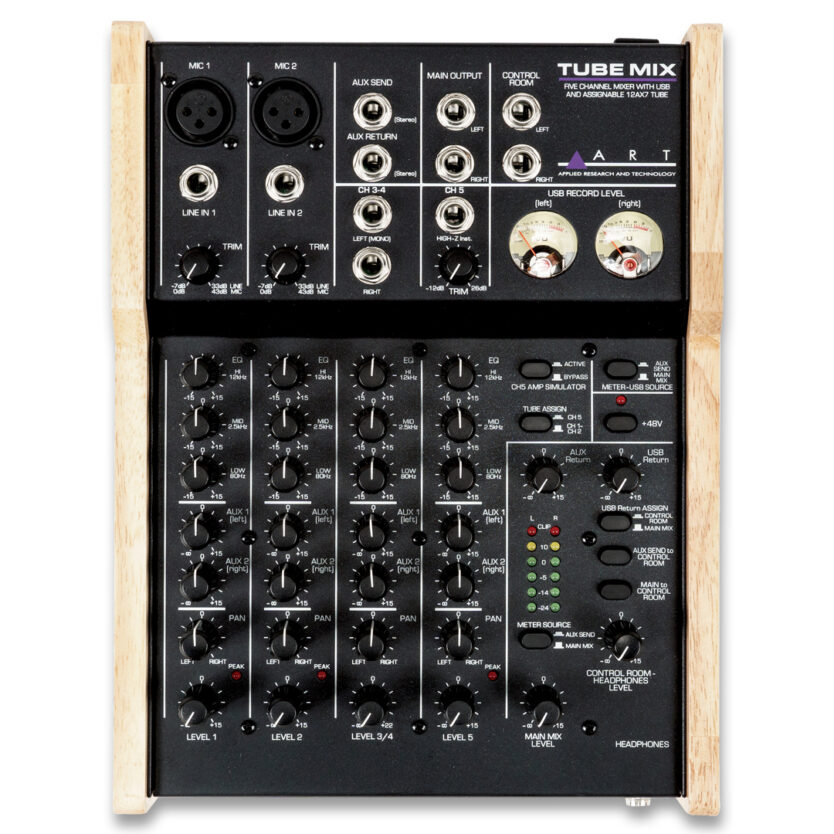

ART TUBE MIX Five Channel Stereo USB Mixer
