ART T8 – Eight Channel Transformer/Isolator
Art Pro Audio, Audio Processing, Live Sound, Signal Splitter & Isolation, Studio Gear

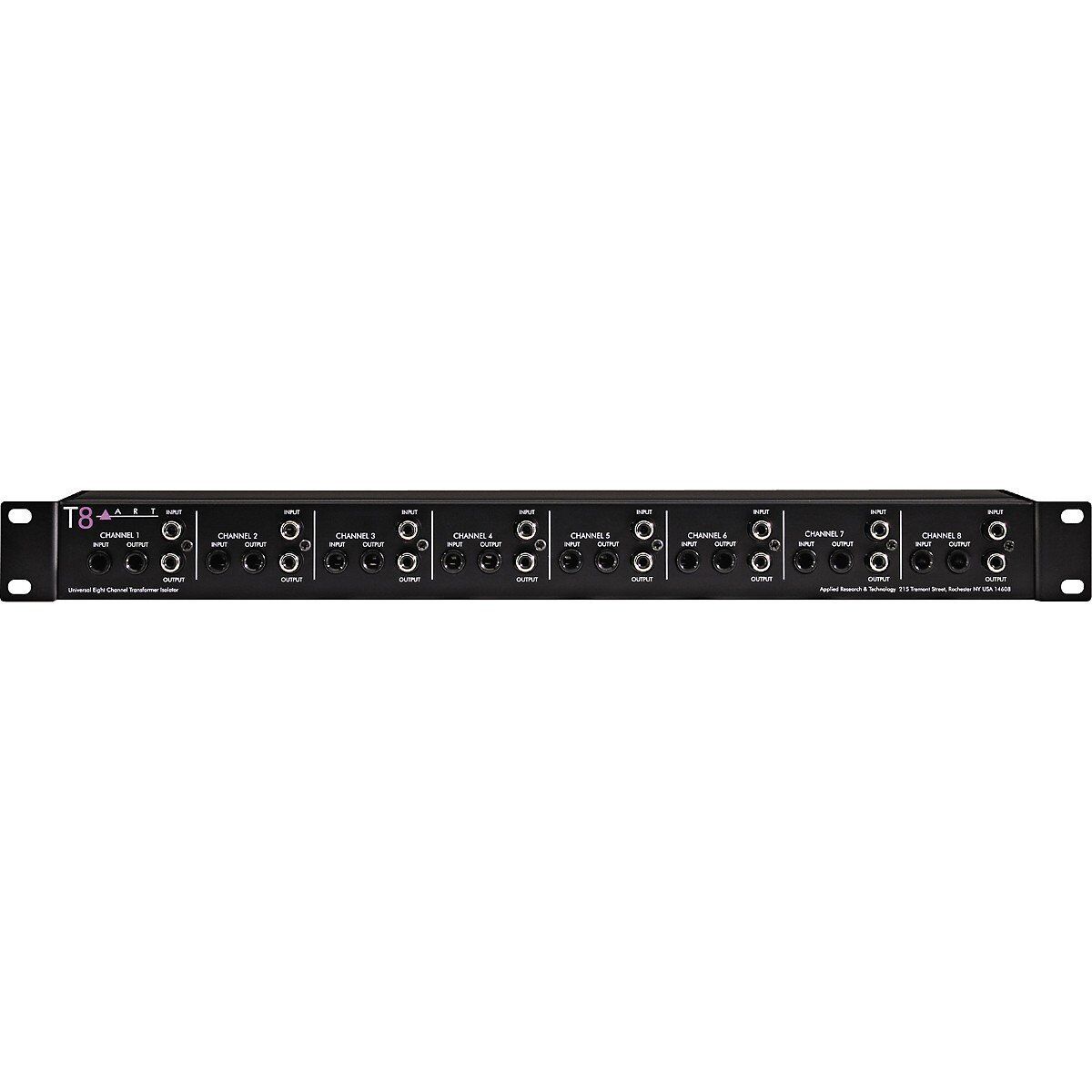

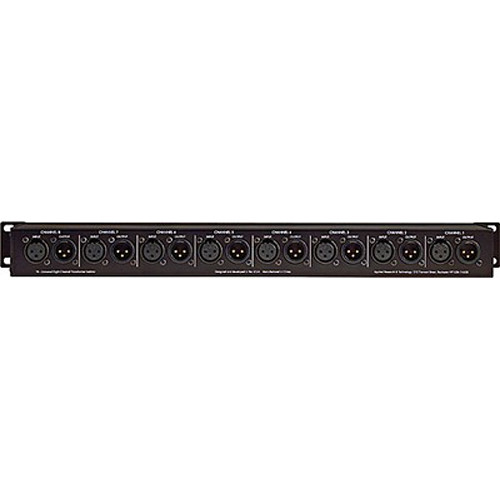

ART T8 Eight Channel Transformer/Isolator
Availability:
In stock
$359.99
In stock
Weight | 1.995806428 kg |
---|---|
Dimensions | 53.594 × 18.034 × 8.89 cm |
brands | Art Pro Audio |
Specification
Frequency Response: |
10Hz –50kHz, +/-.5dB @ +4dBu |
THD: | .01% Typical @ 1kHz,+18dBu, <.1% @ 100Hz, +24dBu |
Channel Separation: | 90dB typical |
CMRR: | 60dB typical |
Phase Error | less than 5°, 20Hz – 20kHz |
Insertion Loss: | .4dB @ 100k Ohm Load, 5.5dB @ 600 Ohm Load |
Input Connections: | XLR female balanced, 1/4” TRS balanced, and RCA type phono jacks |
Output Connection: | XLR male balanced, 1/4” TRS balanced, and RCA type phono jacks |
Power Requirements: | Totally Passive |
Dimensions: |
44.5mm x 482.6mm x 95mm |
Weight: | 1.7kg |
