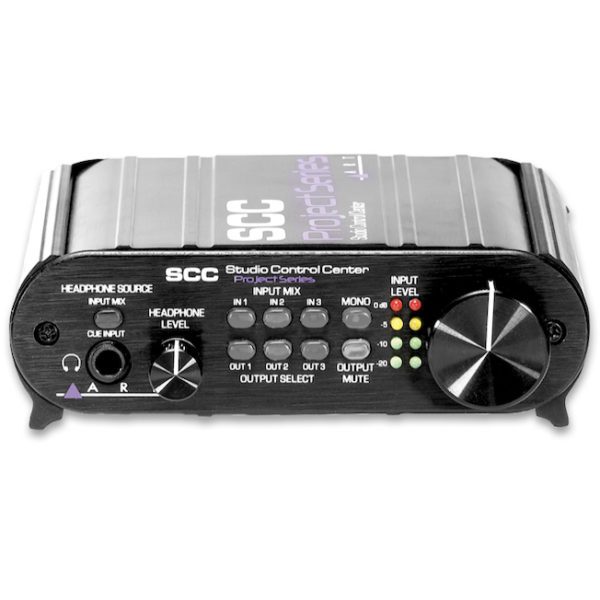

ART Project Series SCC Studio Control Center

Art Pro Audio
Availability:

In stock
Add to wishlist
Compare
  • Separate Headphone Output
  • Mono Switch & Output Mute Switches
  • Input and Output Trim Controls
  • Input Level Metering
  • Solid All Metal Project Series Stackable Case
  • External Low Noise Power Supply

$309.99

In stock

Price Match

ART Project Series SCC Studio Control Center

SKU: ARTP_SCCCE Categories: , , , ,
Weight 1.406136347 kg
Dimensions 26.924 × 17.018 × 6.604 cm
brands

Art Pro Audio

Specification



Maximum Input Level: +21dBu balanced inputs
+20 dBu unbalanced inputs
Input Impedance: 9k Ohms balanced (CH1, CH2)
5k Ohms unbalanced (CH3, Cue)
Equivalent Input Noise: < -96 dBu (balanced inputs)
< -102dBu (Cue Input)
Output Connection: OUT1-OUT3 : 1/4-inch Balanced TRS
HEADPHONE: 1/4-inch Stereo TRS headphone jack
Max Output Level: +18dBu balanced (OUT1-OUT3)
HEADPHONE: 100mWx2 @100 ohms
Maximum Gain: +23 dB (balanced in-out)
+20dB (Cue input to Headphone output)
Frequency Response: 10-100kHz + 0.5dB
THD: <0.004% @ 20-20kHz
CMRR: >50 dB
Chassis Type: All aluminum black anodized with integral rubber sides
Power Requirements: 9VAC @ 1000mA (external)
Dimensions: 1.75”H x 5.9”W x 6.5”D (44.5mm x 150mm x 165mm)
Weight: 2.5 lbs. (1.14 kg) with power supply and packaging
Note: 0 dBu = 0.775Vrms
