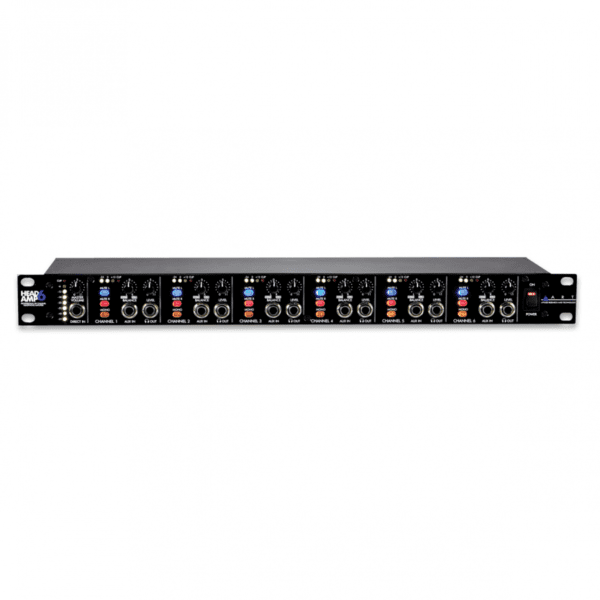

ART HeadAmp6 – Professional Six Channel Headphone Amplifier

Specifications

Input Connections	XLR-F balanced (2), ¼-inch balanced (9)
Output Connections	XLR-M balanced (2), ¼-inch balanced (2), ¼-inch stereo headphone (18)
Input Impedance	40K Ohms Main, 10K Ohms Direct, 15K Ohms Aux In
Output Impedance	<12 Ohms Headphones
Maximum Input Leve	+21dBu (all inputs)
Maximum Output Level	150mW (600 Ohm Headphones) 500mW (32 Ohm Headphones) 150mW (8 Ohm Headphones)
Maximum Gain	22dB
Signal to Noise Ratio	>90dB typical
THD	<.01% typical
Dynamic Range	>101dB typical
CMRR	>40dB
Phase Shift	<10 degrees, 20Hz – 20kHz
Power Requirements	120VAC / 50-60Hz, or 230VAC / 50 Hz, 15 Watts
Dimensions: (HxWxD inch)	1.75 x 19 x 6
Dimensions: (HxWxD mm)	44.5 x 483 x 152
Weight	5.3 lbs. (2.4kg)
